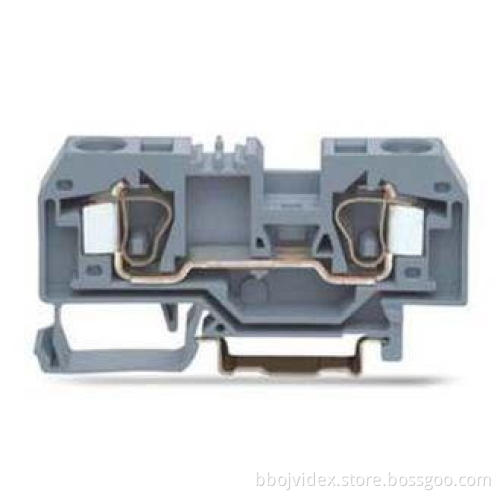

24 - 12 AWG 600V 50A 54A Spring Loaded Terminal Block , Gray PA66 Insulation
Quick details
2-Conductor Through Terminal Block
Wire Range 0.2-10.0mm2/24-12AWG.
800V 57A 600V 50A 54A
Applied for any kind of wires
Order No.:210921(Gray)
Other Color: 210922(Orange)/210923(Blue)
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, and maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer's requests.
◆ Mounted on SP35 standard rail (steel or aluminum).
Specifications:
|
Article: |
2-Conductor Through Terminal Block |
|||
|
Wire Range: |
0.2-10.0mm2/24-12AWG |
|||
|
|
IEC |
UL |
CSA |
EN |
|
Rated Voltage: |
800V |
600V |
600V |
800V |
|
Rated Current: |
57A |
50A |
54A |
57A |
|
Size (mm/in): |
10×78×35mm/0.394×3.07×1.38 in |
|||
|
Strip length (mm/in): |
12-13 mm/0.49 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Entry Type: |
Front-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
|
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Gray/Orange/Blue |
|||
|
Packing: |
50PCS |
|||
Attachment:
|
Name |
Order No. |
|
End-and Intermediate |
210121(Gray)/210122(Orange) |
|
Adjacent Jumper |
210301 |
|
Protective Warning Marker |
210701 |
