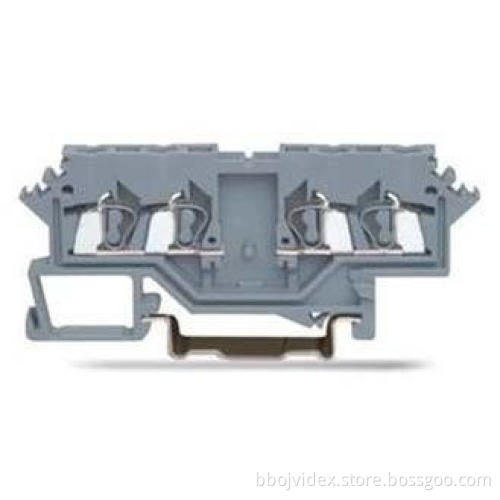

WAGO 2 * 2 Conductor Through 24 - 16 AWG Spring Terminal Block Side - Marked
Quick details
2*2-Conductor Through Terminal Block(Side-Marked).
Wire Range 0.2-2.5mm2/24-16AWG
800V 24A 600V 20A 25A
Front-entry Type
Order No.:225903(Gray).
Other Color: 225904(Blue)
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, and maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer's requests.
◆ Mounted on SP35 standard rail (steel or aluminum)
Specifications:
|
Article: |
2*2-Conductor Through Terminal Block(Side-Marked) |
|||
|
Wire Range: |
0.2-2.5mm2/24-16AWG |
|||
|
|
IEC |
UL |
CSA |
EN |
|
Rated Voltage: |
800V |
600V |
600V |
800V |
|
Rated Current: |
24A |
20A |
25A |
24A |
|
Size (mm/in): |
5×73×28mm/0.197×2.87×1.10 in |
|||
|
Strip length (mm/in): |
8-9 mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Entry Type: |
Front-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
|
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Gray/Blue |
|||
|
Packing: |
100PCS |
|||
Attachment:
|
Picture |
Name |
Order No. |
|
|
End-and Intermediate |
225101(Gray)/225102(Orange) |
|
|
Adjacent Jumper |
225301 |
|
|
Protective Warning Marker |
225701 |
