30 - 10 AWG 600V 30A 40A UK5 Screw Terminal Blocks PA66 Insulation
Quick details

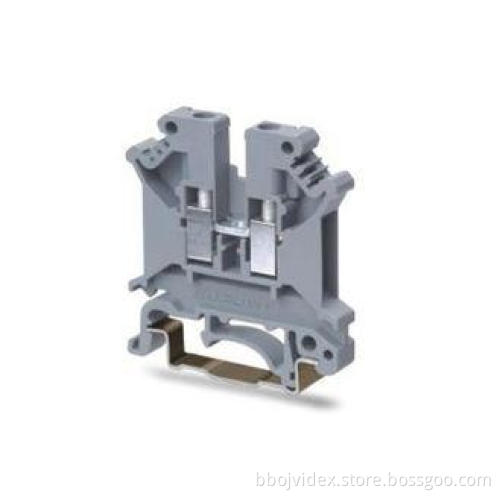

UK5 Screw Terminal Block.
Wire Range 0.2-6.0 mm2/30-10AWG
800V 800V 600V 30A 750V 38A
Side-entry type
Order No.:305901(Gray)
Other Color: 305902 (Blue)
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer's requests.
◆ Mounted on SP35 standard rail (steel or aluminum).
|
Part Name: |
UK5 Screw Terminal Block |
|||
|
Wire Range: |
0.2-6.0 mm2/30-10AWG |
|||
|
|
IEC |
UL |
CSA |
EN50019 |
|
Rated Voltage: |
800V |
600V |
600V |
750V |
|
Rated Current: |
41A |
30A |
40A |
38A |
|
Size (mm/in): |
47/6.2/42.5 mm |
|||
|
Strip length (mm/in): |
8mm/0.33in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
screw-clipping |
|||
|
Entry Type: |
Side-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Gray/Blue |
|||
|
Packing: |
100PCS |
|||
|
Picture |
Part Name |
Order Nr. |
|
|
End Plate |
302101 (Gray) |
|
|
Insertion Bridge |
302312 |
