800V 76A 24 - 6 AWG UK10N Screw Terminal Blocks Strip Lengt

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhejiang China (Mainland)

Product Description

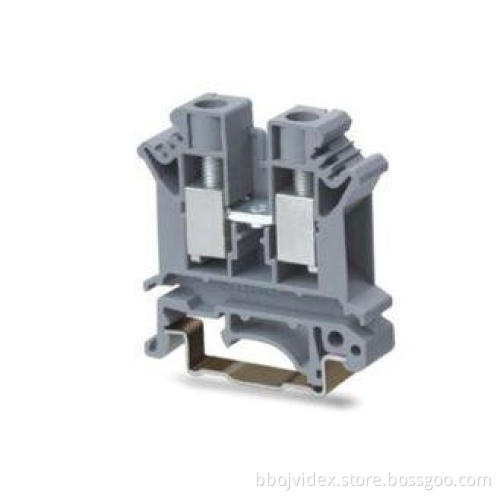

800V 76A 24 - 6 AWG UK10N Screw Terminal Blocks Strip Length 10mm

Quick details

UK10N Screw Terminal Block

Wire Range 0.5-16.0 mm²/24-6 AWG

800V 76A 600V 65A 750V 73A

Strip length 10mm/0.39in

UK10N Screw Terminal Block
Order No.:310901(Gray).
Other Color: 310902 (Blue)
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer's requests.
◆ Mounted on SP35 standard rail (steel or aluminum).

Specifications:

Part Name:	UK10N Screw Terminal Block
Wire Range:	0.5-16.0 mm²/24-6 AWG
	IEC	UL	CSA	EN50019
Rated Voltage:	800V	600V	600V	750V
Rated Current:	76A	65A	65A	73A
Size (mm/in):	47/10.2/42.5 mm
Strip length (mm/in):	10mm/0.39in
Wires:	Applied for any kind of wires
Connect Ways:	screw-clipping
Entry Type:	Side-entry
Peak Voltage:	8KV
Weight:	g
Pollution Severity:	3
UL94 Insulation Material:	V 0 or V 2
Insulation Material:	PA66
Color:	Green-yellow
Packing:	100PCS

Attachment:

Picture	Part Name	Order Nr.
	End Plate	302101 (Gray) 302102 (Orange)
	Insertion Bridge	302312 302313 302320
