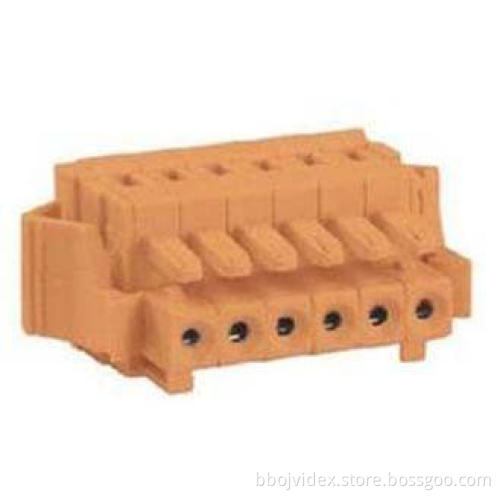

6P 7mm Pitch 24 - 14 AWG Male MCS Connector With Spring-cage Clamp
2-24 male connectors with spring-cage clamp(with fixing flanges)
Order No.:438106/050(orange).
|
Article: |
2-24 male connectors with spring-cage clamp(with fixing flanges) |
|||
|
Pitch: |
7mm/0.28in. |
|||
|
|
IEC |
UL |
CSA |
|
|
Rated Voltage: |
250V |
300V |
300V |
|
|
Rated Current: |
10A |
10A |
10A |
|
|
Wire Range |
0.2-1.5mm2/24-14AWG |
|||
|
Available Poles: |
2-24 |
|
|
|
|
Strip length (mm/in): |
||||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Peak Voltage: |
2.5KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
2 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
orange |
|||
|
Packing: |
100PCS |
|||
