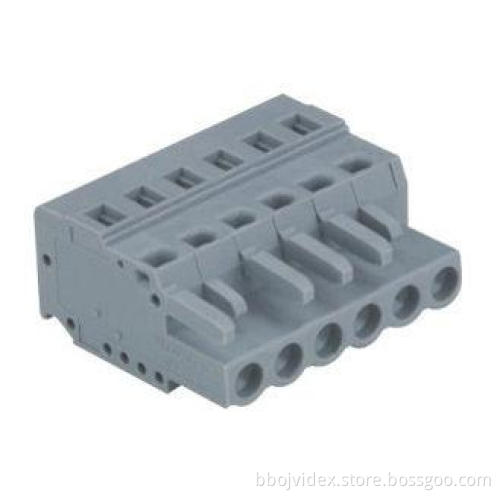

Gray Female Spring Clamp 24 - 14 AWG MCS Connector PA66 SP450 SP458
Quick details
2-24 Female Connectors With Spring-Clamp.
Pitch 5.0mm/0.197in
300V 16A 15A.
Wire Range 0.2-2.5mm2/24-14AWG
Insulation Material PA66.
Order No.:450106(Grey)
◆ As PCB Connectors,
◆As feed-through plug connector,
◆ As plug connectors on rail-mounted terminal blocks.
◆ As plug-in connection for flying leads for different types of assembly,
◆ Applied in PCB, heat pump controller,the door control of a lightrail.
|
Article: |
2-24 Female Connectors With Spring-Clamp |
|||
|
Pitch: |
5.0mm/0.197in |
|||
|
|
IEC |
UL |
CSA |
|
|
Rated Voltage: |
300V |
300V |
300V |
|
|
Rated Current: |
16A |
15A |
15A |
|
|
Wire Range |
0.2-2.5mm2/24-14AWG |
|||
|
Available Poles: |
2-24 |
|
|
|
|
Strip length (mm/in): |
8-9mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Peak Voltage: |
4.0KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Gray |
|||
|
Packing: |
100PCS |
|||
|
Picture |
Name |
Order No. |
|
|
Mounting Tool |
450014 |
|
|
Jumper |
450012 |
