7202 / 7202B / 7202C Angular Contact Ball Bearings For Agri
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Wuxi,China |
|---|
Single Row Angular Contact Ball Bearings 7202,7202B,7202C SIZE:15mm×35mm×11mm
Angular contact ball bearings are able to support radial load axial load .As single row angular contact ball bearings can only support axial load in single direction ,matched bearing mounting is often adopted to them as matched parts of bearings ,preload for them is more convenient .
| Type | Ball |
| Model Number | 7202 |
| Brand Name | YW or OEM |

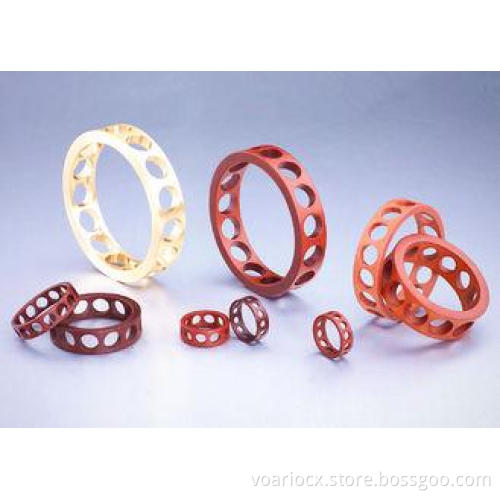

| Cage Material | brass,steel,nylon |
| Precision Rating | P0, P6, P5 ,P4 ,P2 |
| Clearance Grades | C0,C2,C3,C4,C5 |
| Vibration Grades | Z1V1,Z2V2 and Z3V3 |
| Number of Row | Single Row |
| Seals Type |
OPEN |
Single Row Angular Contact Ball Bearings 7202 series:
| Bearing Designation | Boundary Dimensions(mm) | BasiC load Rating( kN ) | Mass(kg) | |||||||
| With Cutting Cage | With pressing Cage | |||||||||
| d | D | B | r (min.) | r1 (min.) | Cr | Cor | Cr | Cor | Approx | |
| 7202 | 15 | 35 | 11 | 0.6 | 0.3 | 8.10 | 4.25 | 8.10 | 4.25 | 0.048 |
| 7202B | 15 | 35 | 11 | 0.6 | 0.3 | 7.45 | 3.95 | 7.45 | 3.95 | 0.048 |
|
7202C |
15 | 35 | 11 | 0.6 | 0.3 | 8.65 | 4.55 | 8.65 | 4.55 |
0.048 |
1.More Than 15 Years Experience
2.Large Stock
3.OEM available
4.ISO9001:2008
5.TS16949:2000
6.Reasonable Price
7.Good after Service
Advanced Metrology:
Hommel profile gauge,Zeiss length gauge,Hommel roughness gauge,Starrett projector,Roundcom roundness gauge,Surform roughness gauge,ABLT-2 bearing life tester
Manufacturing &Process Control:
