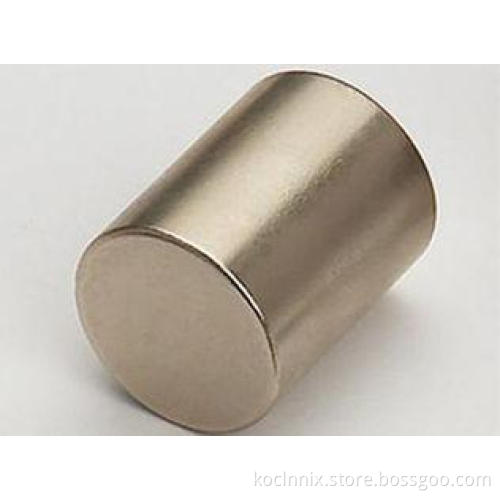

Industrial / Electronic N38 Cylinder Strong Rare Earth Permanent Magnet 1mm-200mm
Quick Detail
Composite: Rare Earth Magnet
Shape: Cylinder
Application: Industrial and Electronic magnet
Grade: N38 Material
Available size: Diameter 1mm-200mm
Description
Rare earth magnets are produced by powder metallurgical process. Nd2Fe14B is the main element in Neodymium and gives Neodymium strong magnetic power. Neodymium has good machinability properties and can work well at temperatures up to 200 degrees Celsius. Since sintered Neodymium easily rusts, usually coated with such metals as Zinc, Nickel, NiCuNi or Epoxy.
Application
They are widely used in speaker, sensors, electronic products and medical equipments.
Specification
|
Grade |
Br (mT) |
bHc (KA/m) |
jHc (KA/m) |
BHmax (MGOe) |
Density (g/cm3) |
Br.Temp.Coefficient (%/℃) |
Working Temp.(℃) |
|
N35 |
1170-1210 |
≥868 |
≥955 |
33-36 |
7.4-7.6 |
-0.12 |
≤80 |
|
N38 |
1210-1250 |
≥899 |
≥955 |
36-37 |
7.4-7.6 |
-0.12 |
≤80 |
|
N40 |
1250-1280 |
≥923 |
≥955 |
38-41 |
7.4-7.6 |
-0.12 |
≤80 |
|
N42 |
1280-1320 |
≥923 |
≥955 |
40-43 |
7.4-7.6 |
-0.12 |
≤80 |
|
N45 |
1320-1380 |
≥876 |
≥955 |
43-46 |
7.4-7.6 |
-0.12 |
≤80 |
|
N48 |
1370-1420 |
≥836 |
≥876 |
46-49 |
7.4-7.6 |
-0.12 |
≤80 |
|
N50 |
1400-1450 |
≥836 |
≥876 |
47-51 |
7.4-7.6 |
-0.12 |
≤80 |
|
N52 |
1440-1480 |
≥836 |
≥876 |
49-52 |
7.4-7.6 |
-0.12 |
≤80 |
