N35 Sintered Neodymium Rare Earth Magnet Disc or Cylinder
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Neodymium-Iron-Boron Nickel Rare Earth Magnet Discs
Spectification
|
Item no. |
Jet-E-4 |
|
Grade |
N35 |
|
Type |
Permanent Magnet |
|
Technology |
Sintered |
|
Dimension |
D15x5mm |
|
Surface coating |
Bright Nickel |
|
Working Temperature |
≤80℃ |
|
Application |
Industrial Magnet |
|
Br of N35 |
1170-1210mT |
|
bHc of N35 |
≥868KA/m |
|
jHc of N35 |
≥955KA/m |
|
Bhmax of N35 |
33-36MGOe |
Application
Application Area: Sensor, Loudspeakers, Magnetic Separator, Bags, Gift, Toys
Feature
1. Strong Neodymium magnet
2. Good performance
3. High quality magnet
4. High corrosion resistant
5. Permanent rare earth material
Available Grade and Parameters
|
Grade |
Br (mT) |
bHc (KA/m) |
jHc (KA/m) |
Bhmax (MGOe) |
Density (g/cm3) |
Br.Temp. Coefficient (%/℃) |
Working Temp.(℃) |
|
N35 |
1170-1210 |
≥868 |
≥955 |
33-36 |
7.4-7.6 |
-0.12 |
≤80 |
|
N40 |
1250-1280 |
≥923 |
≥955 |
38-41 |
7.4-7.6 |
-0.12 |
≤80 |
|
N42 |
1280-1320 |
≥923 |
≥955 |
40-43 |
7.4-7.6 |
-0.12 |
≤80 |
|
N48 |
1370-1420 |
≥836 |
≥876 |
46-49 |
7.4-7.6 |
-0.12 |
≤80 |
|
N50 |
1400-1450 |
≥836 |
≥876 |
47-51 |
7.4-7.6 |
-0.12 |
≤80 |
|
N52 |
1440-1480 |
≥836 |
≥876 |
49-52 |
7.4-7.6 |
-0.12 |
≤80 |

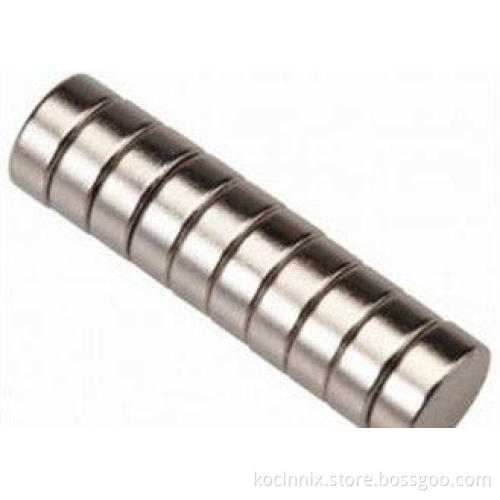

Photos of Discs
