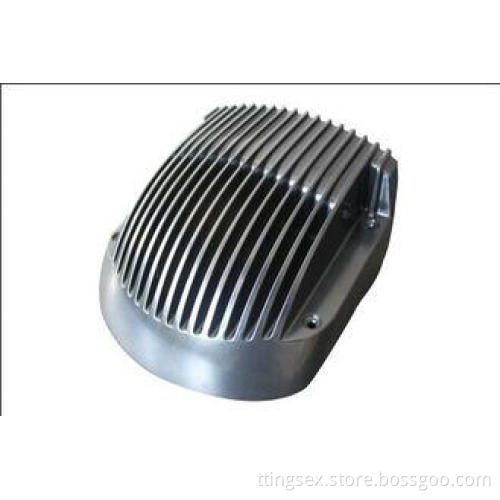

High Speed Aluminum Alloy Die Casting Part Of Motor Cover With Powder Coating
Aluminum alloy die casting Quick Detail:
|
Name |
Aluminum cover |
Application |
motor component |
|
Color |
Nature |
Feature |
custom/precision/pressure |
|
Material |
ADC1 |
Certificate |
ISO 9001 |
Aluminum alloy die casting Description:
|
Product Name |
aluminum alloy die casting |
|
Material |
Al alloy: ADC1, ADC3, ADC5, ADC6, ADC10, ADC10Z, ADC12, ADC12Z, ADC14, 383, 380, 360 Zinc alloy :YZZnAl4A,YZZnAl4B,YZZnAl4Cu1,YZZnAl4Cu3,YZZnAl8Cul, YZZnAl11Cu1,YZZnAl27Cu2, ZDC1, ZDC2, Zamak 3, Zamak5 Mg Alloy:AZ81, AZ91B, AZ91D, AM20, AM50, AS41A, AS41B |
|
Mini Thickness |
Al alloy:0.5mm Zinc alloy:0.3mm Mg alloy:0.8mm |
|
Cavity Number |
Single or Multiple |
|
Mould Life Time |
Millions of times |
|
Mould Standard |
HASCO, DAIDO,DME |
|
Max Diameter&Weight |
D:2m W:50kg |
|
Tolerance |
Normal:+/- 0.25 mm per 25 mm + additional +/- 0,025 mm per full 25 mm Precision :+/- 0,05 mm per 25 mm + additional +/- 0,025 mm per full 25 mm |
|
Equipment |
Al alloy :Cold chamber die casting machine(130T-1600T) Hot chamber die casting machine(18T- 400T) Zinc alloy :Cold chamber die casting machine(130T-1650T) Hot chamber die casting machine(12T-280T) Mg Alloy:Cold chamber die casting machine(160T-2000T) Hot chamber die casting machine(160T-400T) CNC machines, Drilling machines, Milling machines, |
|
Dimension |
According to drawings or samples |
|
Surface Treatment |
Polishing, Sandblasting, Painting, Powder coating, Galvanizing, Chrome plating, etc. |
|
Quality Certificates |
ISO9001-14001 |
|
Service: |
OEM &ODM service |
Our Capacity:
1. Die casting equipment: Aluminum die casting:80 Ton to 1250Ton,zinc alloy die casting machine from 80Ton to 168Ton
2. Machining equipment: CNC milling machine, CNC lathe, CNC high-speed engraving machine, wire cut,CMMetc.
3. Precision machining capability:
a) Machine’s rotating speed: 5,000rpm-30,000rpm;
b) Machining precision tolerance: 0.005-0.01mm,
C) Roughness value :< Ra0.2
d) Minimum cutting tool:0.1mm
4) Strict inspection instrument and ISO9001 control standard.
5) Professional OEM&ODM service.
