Product Description

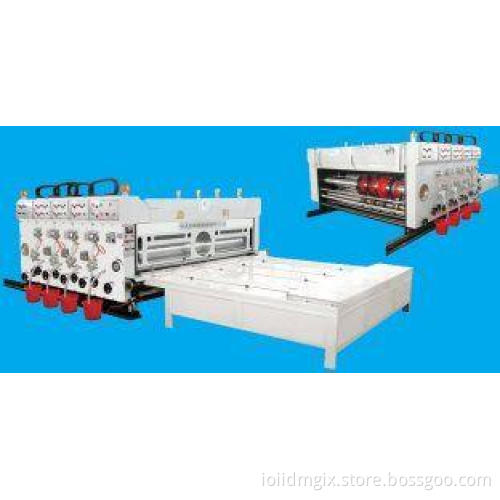

60pcs/min Auto Chrome Carton Flexo Printing Slotting Machinery With Chain Feeding Model

Functions and Features:

1. Chain feeding model with a clutch between the working table and unit creates convenient gravure registering.

2. Motorized detachment and combination; pneumatic locking and loosening of printing units; automatic ink distribution and pneumatic brake separation orientation;

3. Printing and slotting phase is adjusted by mechanical 360o phase adjustment facilities; option of planetary-gear electric phase, shown by digit.

4. Whole machine uses the gear pumping automatic lubrication.

Ink roller and printing pressing roller are connected by cross slide to ensure steady transmission.

5. All axles and rollers are plated with rigid chrome and grinded surface.

The whole machine adopts the electric parts from CHINT and DELIXI;

Whole machine bearing is from the Harbine Bearing Group.

SERIAL	WYAZS NAME	UNIT	WYAZS
			900×1900	1450×1900/2300/2700			1700×2300 /2700
1	Inboard width	mm	2200	2200	2600	3000	2600	3000

2	Max.coverage size	mm	950×2100	1500× 2100	1500× 2500	1500× 2900	1750× 2500	1750× 2900

3	Min.coverage size	mm	250×500	380× 640	380× 640	380× 640	450× 720	450× 720
4	Max.printing area	mm	900×1900	1450× 1900	1450× 2300	1450× 2700	1700× 2300	1700× 2700
5	Thickness of printing plate	mm	7.2	7.2			7.2
6	Max.speed	Pieces/min	60	60			60
7	Topping precision	mm	±0.5	±0.5			±0.5
8	Slotting precision	mm	±1.5	±1.5			±1.5
9	Max.slotting depth	mm	200	300			400
10	Min.slotting interval	mm	260×60×260×60	280×80×280×80			300×100 ×300×100
11	Power of main motor	kw	3	4			5.5
12	Size for whole machine	mm	4500×3000/ 3400×1800	5500×3200/3600 /3900×2000
