Product Description

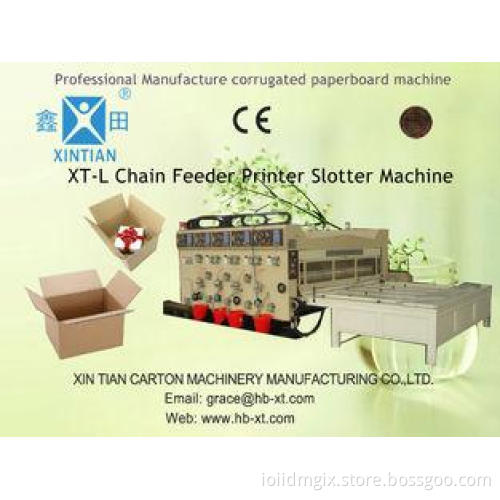

Pneumatic Locking Automatic Lubrication Carton Printing Slotting Machinery With Gear Pumps

Functions and Features:

1. Chain feeding model can ensure that the bent board paper be smoothly sent due to the elastic pressing plate at the front of feeding system.

2. Motorized detachment and combination; pneumatic locking and loosening of printing units; automatic ink distribution and pneumatic brake separation orientation;

Printing and slotting phase is adjusted by planetary-gear electric phase, shown by digit.

3. Whole machine uses the gear pumping automatic lubrication.

Ink roller and printing pressing roller are connected by cross slide to ensure steady transmission.

4. All axles and rollers are plated with rigid chrome and grinded surface.

The whole machine adopts the electric parts from CHINT and DELIXI; Whole machine bearing is from the Harbine Bearing Group.

Option of printing slitting and creasing or printing slotting.

SERIAL	WYAZS NAME	UNIT	WYAZS
			2500×2800
1	Inboard width	Mm	3200
2	Max.coverage size	Mm	2500×3100
3	Min.coverage size	Mm	600×500
4	Max.printing area	Mm2	2450×2800
5	Thickness of printing plate	Mm	6
6	Max.speed	Pieces/min	50
7	Power of main motor	Kw	11
8	Size for whole machine	Mm	6000×4200×2500
9	weight	T	15
