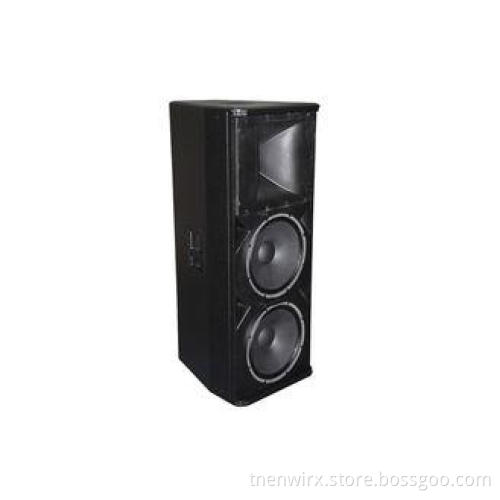

Plywood Cabinet Disco Sound Equipment 3 Way 2 Crossover 1.7

Plywood Cabinet Disco Sound Equipment 3 Way 2 Crossover 1.75"+2x15"

Quick Detail:

Plywood loudspeakers high quality sound

Description:

DF is one series popular loudspeakers. With beautiful mesh grille design, professional, compact and multipurpose cabinet design, and good sound quality, DF series loudspeakers enjoy a very good reputation and were used in many applications in past years.

15mm thick plywood for full range loudspeakers, and 18mm thick plywood for subwoofers.

The pole mount in the loudspeakers make stand and pole support possible. M8 flying points are for fixed installation. White/Black finish available for options. Applications for DF series loudspeakers: night club, disco, conference, pub, church, living show.......

Applications:

church, conference, night club, disco, concert, and living event.

Specifications:

Components: 1.75"(voice coil diameter 3")+2x15"

Nominal Impedance: 4ohm

Power Handling: 800W

Frequency Response: 45Hz-18KHz(±3dB)

Sensitivity(1W/1M): 101dB

Max. SPL: 128dB(continuous), 134dB(peak),

Dispersion(HxV): 80°x 50°

Crossover Point: 1.4 KHz

Connector: SPEAKON

Flying Hardware: M10 rigging point

Dimensions(HxWxD): x x mm

Net Weight(Kg):

Competitive Advantage:

plywood material, high quality drivers inside, excellent sound quality, high power handling capability
