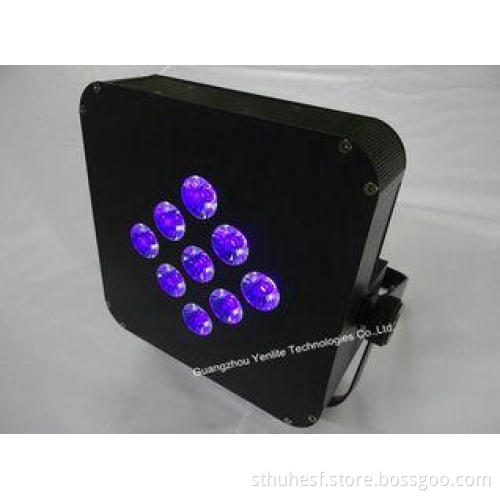

RGBWAU Rechargeable Portable LED Stage Light , Green / Blue

RGBWAU Rechargeable Portable LED Stage Light , Green / Blue / White / Amber / UV Led Lighting

Quick Detail:

9 LED 6IN1(RGBWAU) 12W

Built-in Li-ion battery for 3 -12h of operation

2.4GHz Wireless DMX512

CE, RoHS

Specifications:

Description:

Full color dimming: 255 grade brightness tunning, sound activation

Full color Jumping change: Red, Green, Blue and White color jumping in turns, 255 grade speed control, sound activation

15 color jumping change: 255 grade speed control, sound activation

Multicolor graduating change: 255 grade speed control, sound activation

Multicolor strobe: 7 colors strobe in turns, 255 grade speed control, sound activation.

Auto Run, Built-in programme circulation

Master/Slave: Multiple units linked, slave changes with master synchronizingly.

DMX dimming: Different units are assigned their own DMX address, their outputs are changing with the data of the DMX controller.

1-LCD Display 2-Operation Button 3-Wireless DMX Indicator 4-Sound Activation Indicator 5-DMX Signal Indicator 6-MIC

7-DMX Socket 8-Antenna 9-Battery Charging Indicator 10-Power Out 11-Power In

Button Description

MODE:Working Mode Switch

SETUP:LCD Cursor Moving Key, Flashing Position is the parameter to be revised

UP:Data Up

DOWN:Data Down

Function Setup

• Built-in Function Setup

Press SETUP key to switch among all sub-function key, speed, sound button, etc. Cursor flashing position is the parameter to be revised. Press UP or DOWN to adjust the data. It can be master unit.

For example: LCD displays"4.FADE S010 A:N"

4.FADE: NO.4 function, Fade

S010: Speed value 10

A:N: Sound Activation closed

• AUTO RUN

Auto Run the combination function of all sub-functions, it can be the master

unit,set the Sound Activation parameter to be "N" to close the Sound Activation

Mode of the sub-function.

• DMX Address Setup:

Address Range: 1-512, Press UP to setup address upward and DOWN to setup

address downward. There are two DMX channels for your choices:

DMX 6CH & DMX 8CH:

DMX 6CH Mode:

CH1:0-255 Red Dimming Range

CH2:0-255 Green Dimming Range

CH3:0-255 Blue Dimming Range

CH4:0-255 White Dimming Range

CH5:0-255 Amber Dimming Range

CH6:0-255 UV Dimming Range

DMX 8CH Mode:

CH1:0-255 Red Dimming Range

CH2:0-255 Green Dimming Range

CH3:0-255 Blue Dimming Range

CH4:0-255 White Dimming Range

CH5:0-255 Amber Dimming Range

CH6:0-255 UV Dimming Range

CH7:R, G, B, W, A, U General Dimming

CH8:Strobe Speed

• Slave Mode

Choose Slave Mode, Synchronizing with Master Unit.

• Wireless ID Setup

Press SETUP, UP OR DOWN at present mode to display current ID, press again to setup new ID, ID value will be added 1 more by pressing one time, ID indicator color will change according one by one.

Working Status:

• LED constant light: Showing current ID, no DMX or wireless signal
• RED LED flash: Transmitting
• Green LED flash: Receiving

ID code and LED color corresponding relationship:

• 1:RED
• 2:GREEN
• 3:RED+GREED---------------Yellow
• 4:BLUE
• 5:RED+BLUE------------------Purple
• 6:GREEN+BLUE--------------Cyan
• 7:RED+GREED+BLUE------White

• Battery Power Left Indicator

If there is no operation for 15 seconds for all Keys, it will automatically showing battery power status. Current value is the percentage of the total full power.

Description for LED Indicators:

RF-ID: Tricolor LED to indicate working status and ID code.

SOUND: Sound Indicator, flash when signal is strong enough, no relationship with setup.

DMX: DMX signal indicator, flash when there is DMX signal or connected with master unit.

CHARGING LED: Battery charging indicator, Red is charging, Green is full.

Application:

The unit is designed to be applied in movable stages, shows, pubs, shops and outdoor projects. It is with high power Red, Green, Blue and White LEDs to mix all kinds of changing colors, using 2x8 digits LCD to display all control functions. It is with the functions of stand alone, linking or connecting with DMX controller. User can input their own data to edit and control the lights.
