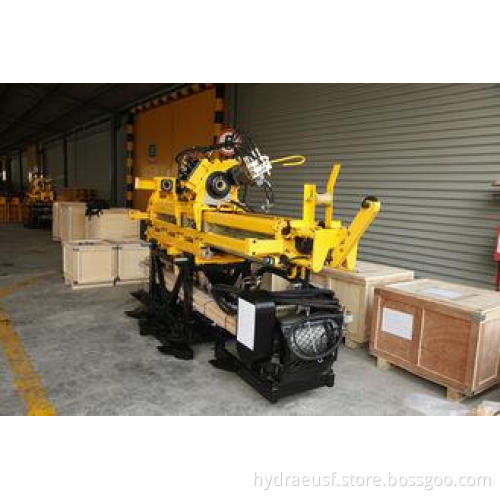

High Efficiency Underground Drilling Rig With Hydraulic System CKD600C
Description:
CKD600C Underground Core Drilling Rig is designed especially for underground 360° drilling work, capable of diamond core drilling and other advanced drilling works. The whole structure can be divided into control panel, rig body and power unit, among which, the rig body includes rotatable base, sliding mast, head rotation and feed system, wire line winch and foot clamp, and the power unit includes electromotor, electric control box and hydraulic system. Also special mud pump can be equipped to meet clients’ special needs. CKD600A Underground Core Drilling Rig (wheel type) is all hydraulic driven, which endows the features of easy operation, precise control, instant transport and high efficiency in drilling work.
Specifications:
|
Drilling Capacity |
Dia of Drill Rod |
Drilling Depth |
||
|
|
Downward |
Level |
Upward |
|
|
AS |
1,000m |
650m |
750m |
|
|
BS |
750m |
470m |
650m |
|
|
NS |
600m |
370m |
370m |
|
|
HS |
350m |
210m |
210m |
|
|
Hydraulic System |
Pressure |
26MPa |
||
|
Cooling |
Water Cooled |
|||
|
Power System |
Model |
BM2-250M-4-B35 |
||
|
Power |
55KW |
|||
|
Electromotor RPM |
1,480rpm |
|||
|
Drill Head |
Max Torque |
1,030Nm |
||
|
Max Rotation ,RPM |
1,1450rpm |
|||
|
Feed Stroke |
1,800mm |
|||
|
Max Inside Diameter |
97mm |
|||
|
Max Pull |
65KN |
|||
|
Max Push |
65KN |
|||
|
Wireline Winch |
Max Pull |
10KN(bare drum) |
||
|
Pulling Speed |
120m/min(bare drum) |
|||
|
Rope Diameter |
6mm |
|||
|
Rope Length |
800m |
|||
|
Mast |
Length |
3.3-5.8m |
||
|
Drilling Angle |
-90°-90° |
|||
|
Dump Length |
1.1m |
|||
|
Foot Clamp |
Drill Rod |
BS, NS, HS |
||
|
Transporting Dimensions |
Main Frame Unit |
3,700×1,790×2,160mm |
||
|
Power Unit |
2,980×1,210×1,560mm |
|||
|
Operation Unit |
785×680×950mm |
|||
|
Total Weight |
|
3.87t |
||
Competitive Advantage:
a. We manufacture the best Hydraulic Drilling Rigs in China
b. Our products dominate more than 80% domestic market shares
c. We are the OEM of the UDR series drilling rigs
d. Our drilling rigs are now working in more than 30 countries all around the world
