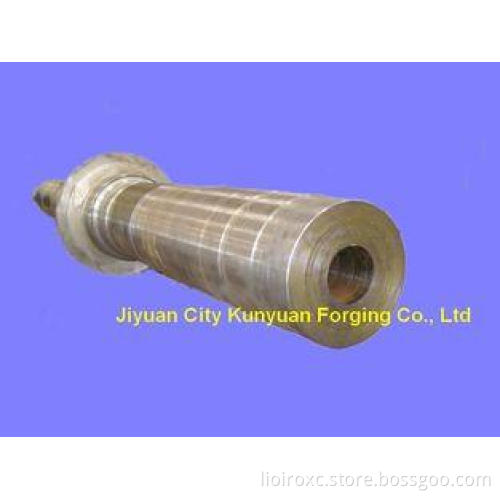

Forging Steel Iron Centrifugal Casting Pipe Mould , 35CrMo 42CrMo
Quick Detail:
1. Material:20CrMo,30CrMo
2. Outer Diameter ≤800mm
3. The max Length:8000mm.
Description:
Pipe mould is forging steel pipe mould. Forging steel pipe mould is forged by hydraulic machine and machining on the lathe. It is applied topetroleum,water supply etc.
Making process: steel ingot-forging-rough machining-UT-boring-QT-2th rough machining-enlarge hole-vibration aging-lightly boring-finished boring-oiling-packing-delivery
Applications:
Pipe mould can make various pipe, such as petroleum and water supply etc.
Specifications:
|
Name |
Pipe Mould |
|
Manufacture Technique |
forging and machining |
|
Material |
20CrMo;30CrMo;21CrMo10,42CrMo,35CrMo ,etc |
|
Outer Diameter |
≤800mm |
|
Inner Diameter |
≤600mm |
|
Length |
≤8000mm |
|
Roughness |
Ra 1.6 |
|
QT Hardness |
240-280HB |
|
Tolerance (mm) |
0.1 |
|
Coaxiality (mm) |
1.1-1.9 |
|
Taper (mm) |
0~1 |
