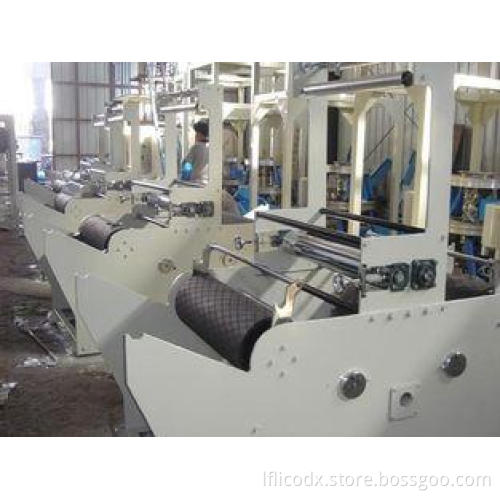

SJ-A50,55,65,65-1 LDPE / HDPE Film Blowing Machine
Quick Detail:
1. Certificate: CE
2. high quality with the most competitive price
3. make special accoring to the client requirment
|
Condition |
New |
|
Application |
Film |
|
Plastic Processed |
PE |
|
Blow Moulding Type |
Extrusion Blow Moulding |
|
Automatic |
Yes |
|
Place of Origin |
Zhejiang, China (Mainland) |
|
Brand Name |
SANBI |
|
Model Number |
SJ-A50/55/65/70 |
|
Voltage |
380V / as request |
|
Power(W) |
22-50KW |
|
Dimension(L*W*H) |
6500*2500*5150mm |
|
Weight |
1.8/2.2/2.6/2.8T |
|
Certification |
ISO 9000 ,CE |
|
Warranty |
1 Year |
|
After-sales Service Provided |
Engineers available to service machinery overseas |
|
Certificate |
CE,ISO 9000 |
|
Material |
HDPE,LDPE ,LLDPE |
|
Product Type |
Pe Film |
|
Processing Type |
Extruding Machine |
|
quality |
top quality |
|
service |
high quality service |
|
Plastic Film Blowing Machine |
Plastic Film Blowing Machine |
|
type |
Film Blowing Machine |
|
supplier |
trustworthy |
|
The product |
Popular worldwide |
Description:
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE).
Optional Equipment:
1)AUTO LOAD
2)CAST ALUM HEATER
3)AIR SHAFT
4)DIE ROTARY DEVICE
5)BOUBLE SIDES WINDER
6)UP AND DOWN
Applications:
It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Specifications:
|
Model |
SJ-A50 |
SJ-A55 |
SJ-A65 |
SJ-A65-1 |
|
Diameter of screw |
φ50 |
φ55 |
φ65 |
φ65 |
|
Lay-flat width of film(mm) |
100-600 |
200-800 |
300-1000 |
400-1200 |
|
Thickness of film(mm) |
0.01-0.10 |
0.01-0.10 |
0.01-0.10 |
0.01-0.10 |
|
Max. output(kg/h) |
35 |
50 |
65 |
80 |
|
L/D ratio of screw |
28:1 |
28:1 |
28:1 |
28:1 |
|
Power of main motor(kw) |
11 |
15 |
22 |
22 |
|
Power of Traction motor(kw) |
1.1 |
1.1 |
1.5 |
1.5 |
|
Heating Power(kw) |
11 |
13 |
19 |
21 |
|
Overall dimension(L*W*H) (m) |
4.8*1.9*3.8 |
5.5*2.1*4.6 |
6.5*2.3*5.2 |
6.500*2.5*5.2 |
|
Weight(T) |
1.5 |
2 |
2.3 |
2.6 |
