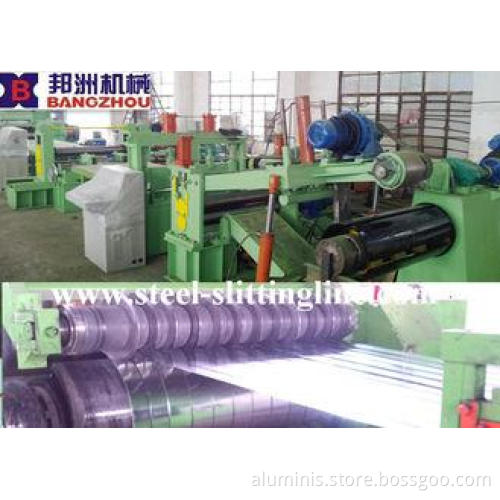

Semi-automatic Simple Steel Slitting Line For Pipe Material
Quick Detail:
1) Thickenss: 0.5mm-3mm
2) Width: 500mm-1219mm
3) Capacity: 10T
4) Speed: 0-40m/min
5) Maximum slitting slices: 12 pieces
6) Composed device: uncoiler , slitter, recoiler
Specifictions
| Item | Steel slitting line | |
|
Coil Material Specifications Kind provide the detailed information with the inquiry |
Thickness | 0.5-3mm |
| Coil width | 500-1219mm | |
| Material | Hot rolled steel | |
| Coil weight | 10T | |
| Coil I.D | 480mm-510mm | |
| Coil O.D | 1400MM | |
| Decoiler and Recoiler | Type | Hydraulic&Motorized |
| Coil Width | Max. 1300mm | |
| I.D | 480-510mm | |
| O.D | Max. 1500mm | |
| Capacity | 10T(Max) | |
| Scrap winder I.D | 420mm | |
| Blade Specifications | dimension | 200mmx340mmx15mm |
| material | 6CrW2Si | |
| hardness | HRC58-60 | |
| Slitting line specifications | Line speed | 0-40m/min |
| Power | 380V/50HZ/3 PH | |
| Dimension | 18M(L)x7m(W) | |
| Slitting width tolerance | ≤±0.05mm/2m | |
| Operation workers needed | 1 technician and 2 common workers | |
Main Components of the slitting line
| Hydraulic entry coil car | 1 Unit |
| Hydraulic decoiler | 1 Unit |
| Press and pinch device | 1 Unit |
| Hydraulic head cutter | 1 Unit |
| Side guide device | 1 Unit |
| Slitter | 1 Unit |
| Scrap winder | 1 Unit |
| Tension stand | 1 Unit |
| Recoiler | 1 Unit |
| Hydraulic exit coil car | 1 Units |
Layout of the whole slitting line
Features:
1. This is a pipe steel slitting line, which can process the steel coil above 2mm but less than 4mm.
2. Semi-automatic design make the whole line very easy to operate and also strong enough .
3. It is a line between automatic and simple so competitive in the price.
4. No need the big pits , it is design as up the ground.
