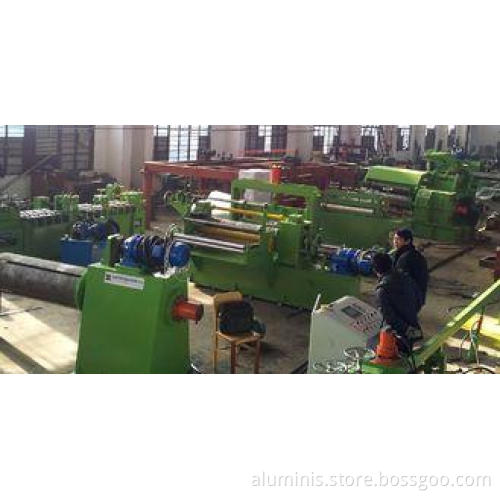

Hydraulic Steel Slitting Line

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

Application:CR/HRC/stainless steel /galvanized
thickness of coil plate:0.3-2mm
width of coil plate:1250mm
coil weight:10MT(max)
line speed:0-40m/min

Hydraulic Steel Slitting Line With Cut To Length Line , 10MT Coil Weight

Specifications:

Application:	CR/HRC/stainless steel /galvanized and so on
thickness of coil plate:	0.3-2mm
width of coil plate:	1250mm
coil weight:	10MT(max)
coil I.D:	ф508
coil O.D:	ф1400mm
the diameter of slitting blade shaft	ф120
slitting blade:	φ120Xφ220X10
material of slitting blade:	9CrSi
the hardness of slitting blade:	HRC58°-60°
recoiler I.D:	φ508
power:	380V/50Hz/3Ph
tolerance of width error:	≤±0.05mm/2M
line speed	0-40m/min
area of the whole machine:	16m(L)x5m(W)
Production orientation	from left to right

1. Hydraulic entry coil car

◆The car can move levelly and vertically, which is convenient for putting the steel coils into the de-coiler.

◆It is driven vertically by hydraulic cylinder with four guide pillars.

◆The level movement is driven by cycloid motor .

◆The capacity it can carry is 8 Tons(MAX).

2. Hydraulic cantilever un-coiler

◆Supporting steel rolls and uncoiling.

◆It can expand and shrink with hydraulic oil cylinder and fit with the inner hole of the steel coils and is equipped with supporting stand.

◆7.5kw motor drives the coils running and the motor can run right and left to prevent the coils running by inertia.

◆The capacity it can carry is 8 Tons(MAX).

3. Slitting machine

◆Power part: This is composed of power-stand, decelerator, 15KW direct current motor, gear distributing case, coupler, spindle, connecting-cover, side guide device, etc.

◆Host machine: This is composed of bottom-stand, fixed bracket, big slide, knife pivot (φ120mm, 2pcs), movable bracket, slide, the front and back adjustable device of bracket, knife pivot lifting and pressing down adjustment device, accompany of blade, separating cover, rubber band and 10 blades with the machine

◆It change the blades through moving out the bracket hydraulically and is very convenient and fast.

4. Scrap winder

◆It consists of base, the shaft and plate of scrap material, friction wheel, supporting wheel chain, chain, decelerator and moment motor.

◆It is used to pack and wind the slitting scrap strips.

5. Hydraulic cutting machine

◆It is used to make the plates easy to the next process by cutting the head even.

◆Adopt double structures, a pressure loading device, can cut the 2X1250steel plates.

◆use to cut to length.

6. Tension device

◆It consist of base, pre-dividing shaft, bracket, press shaft, hydraulic damp device and hydraulic shaft lifting the press down device.

7. Hydraulic recoiler

◆It consist of base, bearing frame, recoiler shaft, the expansion device of hydraulic recoiling, the expanded recoiling plate, movable arm bearing, supporting decelerator,30KW frequency conversion control motor.

◆It uses the hydraulic movable arm with the supporting spacers to ensure the even recoiling quality.

8. Hydraulic exit coil car

◆The car can carry the dividing coils and lift up and down and is movable.

9. Electric control system: electric cabinet and operate table.

10. Hydraulic system: the hydraulic stand, pipes and the connect part.

Applications:

ZJX-0.2-2X1250mm simple hydraulic slitting line is used for slitting the CR/HRC/stainless steel /galvanized to prepare for the next process.
