10MT Steel Slitting Line For Hot Rolled Coils 0.3mm Thick ,
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu, China (Mainland) |
|---|

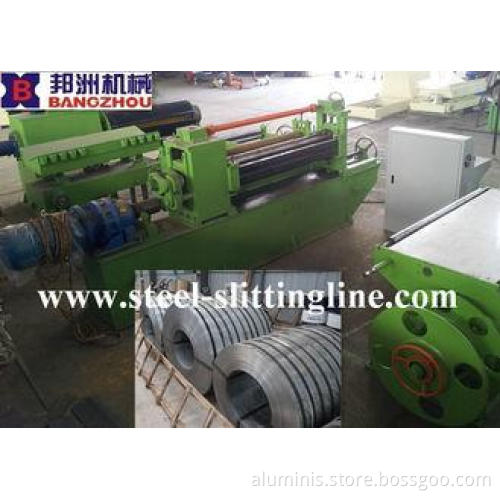

10T 1.5mm thickness 1250mm width Simple Steel Slitting Line
Quick Detail:
1) Thickenss: 0.3mm-1.5mm
2) Width: 550mm-1250mm
3) Capacity: 10T
4) Speed: 0-40m/min
5) Maximum slitting slices: 10 pieces
6) Composed device: uncoiler , slitter, recoiler
Technical parameters
| Application | HRS/CRS/ Galvanized steel/ PPGI, etc |
| Coil thickness | 0.3-1.5mm |
| Coil width | 1250mm |
| Coil I.D | 480-510mm |
| Coil O.D | 1400mm |
| Slitting shaft diameter | 120mm |
| Slitting blades | 120mmx220mmx10mm |
| Slitting blades material | 6CrW2Si |
| Slitting Blade hardness | HRC58-60 |
| Recoiler I.D | 508mm |
| Power | 380V /50HZ /3PH |
| Tolerance of width error | ≤±0.05mm/2m |
| Line speed | 0-40m/min |
| Area of the whole line | 18mx6m |
| Production orientation | From left to right |
Main Components of the slitting line
| Hydraulic entry coil car | 1 Unit |
| Hydraulic decoiler | 1 Unit |
| Side guide device | 1 Unit |
| Slitter | 1 Unit |
| Scrap winder | 1 Unit |
| Tension stand | 1 Unit |
| Recoiler | 1 Unit |
| Hydraulic exit coil car | 1 Unit |
From coil to coils and cut to desired width.
Finished Coils from This slitting line
Customer with manager at the production scene
Competitive Advantage
- convenient to operate
- accurate precision of shearing
- high ratio of performance to price
- tidy recoiling
Customer feedback
All we can guarantee is our quality and our service. So even after sales, we always keep in touch with our customers to know our machines situation.
When we hear our machine is good in working, that is the comfort for our working also make us feel much meaningful .
If you need the high speed and automatic slitting line, here our company is !
If you need simple, need special slitting line, we can also meet your requirements!
Below is the certifications about the quality of machines and the honouring of our enterprise
Application
It is applied to do the high speed slitting and rewinding for the CRS, Galvanized steel and stainless steel, HRS and so on.
Use in great production factory with high output
