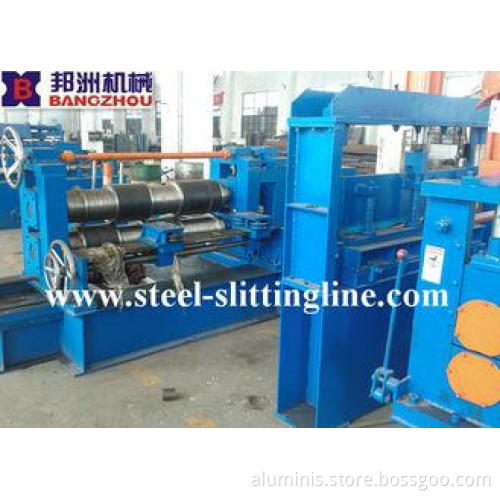

Simple Steel Slitting Line For Hot Rolled Coils 3mm Thick , 1250mm Width
- Application:CR/HRC/stainless steel /galvanized
- thickness of coil plate:1-3mm
- width of coil plate:1250mm
- coil weight:10MT(max)
- line speed:0-40m/min
Specifications
| Application: | CR/HRC/stainless steel /galvanized and so on |
| thickness of coil plate: | 1-3mm |
| width of coil plate: | 1250mm |
| coil weight: | 10MT(max) |
| coil I.D: | ф508 |
| coil O.D: | ф1400mm |
| the diameter of slitting blade shaft | ф160 |
| slitting blade: | φ180Xφ320X20 |
| material of slitting blade: | 9CrSi |
| the hardness of slitting blade: | HRC58°-60° |
| recoiler I.D: | φ508 |
| power: | 380V/50Hz/3Ph |
| tolerance of width error: | ≤±0.05mm/2M |
| line speed | 0-40m/min |
| area of the whole machine: | 20m(L)x6m(W) |
| Production orientation | from left to right |
Composed devices
1. Hydraulic entry coil car --------Carry coils into the slitting line
2. Hydraulic un-coiler ---------Uncoiling the steel coil
3. Pinch and press device ---------Feed plates and pre-straightening the sheet
4. Hydraulic cutting machine --------cut the damage or irregular sheet head
5. Slitting machine -------- Slit the sheet into strips accordingly
6. Scrap winder ---------Wind the scrap which is slit on both sides
7. Tension device ----------Create the tension to improve the recoiling quality
8. Hydraulic recoiler ---------Recoiling the strips into coils seperately
9. Hydraulic exit coil car ---------Carry finished coils out of the production line
10. Electric control system
11. Hydraulic system
Applications:
1. ZJX-1-3X1250mm simple hydraulic Metal slitting line is used for slitting the CR/ HRC/ stainless steel / galvanized to prepare for the next process.
2. This is a Specific model slitting line with simple and automatic elements
3. This model is designed for the Hot rolled steel coils to prepare the material for the pipes or flat bars
4. Much Competitive in the design and price
