15MT Automatic Steel Slitting Line With Hydraulic De-coiler
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu, China (Mainland) |
|---|

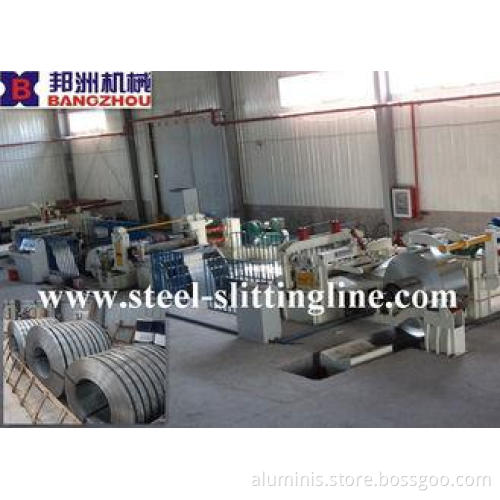

15MT Automatic Steel Slitting Line
With Hydraulic De-coiler and Re-coiler
Quick Detail:
1) Thickenss: 0.3mm-3mm
2) Width: 550mm-1590mm
3) Capacity: 15T
4) Speed: 0-120m/min
5) Maximum slitting slices: 30 pieces
6) Composed device: uncoiler , slitter, recoiler
Specifictions
| Item | Steel slitting line | |
|
Coil Material Specifications Kind provide the detailed information with the inquiry |
Thickness | 0.3-3mm |
| Coil width | 500-1550mm | |
| Material | Galvanized steel | |
| Coil weight | 15T | |
| Coil I.D | 480mm-510mm | |
| Coil O.D | 1600MM | |
| Decoiler and Recoiler | Type | Hydraulic&Motorized |
| Coil Width | Max. 1600mm | |
| I.D | 480-510mm | |
| O.D | Max. 1600mm | |
| Capacity | 15T(Max) | |
| Scrap winder I.D | 420mm | |
| Blade Specifications | dimension | 200mmx340mmx15mm |
| material | 6CrW2Si | |
| hardness | HRC58-60 | |
| Slitting line specifications | Line speed | 0-120m/min |
| Power | 380V/50HZ/3 PH | |
| Dimension | 30M(L)x8m(W) | |
| Slitting width tolerance | ≤±0.05mm/2m | |
| Operation workers needed | 1 technician and 2 common workers | |
Main Components of the slitting line
| Hydraulic entry coil car | 1 Unit |
| Hydraulic decoiler | 1 Unit |
| Press and pinch device | 1 Unit |
| Hydraulic head cutter | 1 Unit |
| Side guide device | 1 Unit |
| Slitter | 1 Unit |
| Scrap winder | 1 Unit |
| Tension stand | 1 Unit |
| Recoiler | 1 Unit |
| Hydraulic exit coil car | 1 Units |
Application
It is applied to do the high speed slitting and rewinding for the CRS, Galvanized steel and stainless steel, HRS and so on.
Use in great production factory with high output
Features:
1. Adopt good PLC control system, high degree of automation.
2. Adopt reliable hydraulic system and hydraulic elements.
3. Electronics adopts famous wrld brands,quite reliable.
4. Adopt good mechanical design with high solidity and strength.
Company Introduction
Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Jiangyin, Wuxi City. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
Our main products are Steel coil slitting lines, cut to length lines, Flat bar chamfering, deburring and straightening machines, . Our products are supplied to roll forming machine and pipe welding factories and can be also applied to other industries which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field
We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
