1519mm Automatic Steel Slitting Line Machine and Cutting Ma

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China (Mainland)

Product Description

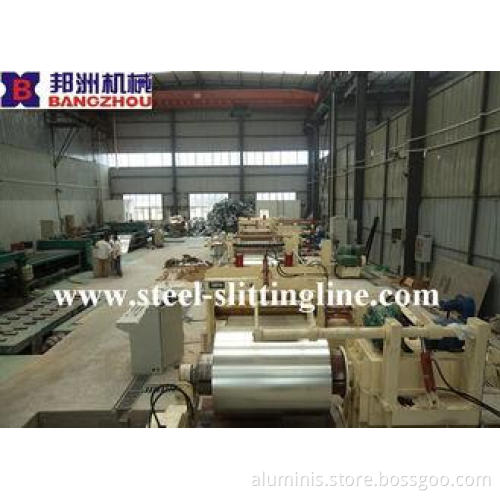

1519mm Automatic Steel Slitting Line Machine and Cutting Machine

Quick Detail:

1) Thickenss: 0.3mm-3mm

2) Width: 500mm-1600mm

3) Capacity: 15T

4) Speed: 0-120m/min

5) Maximum slitting slices: 30 pieces

6) Composed device: uncoiler , slitter, recoiler

Specifictions

Item	Steel slitting line
Coil Material Specifications Kind provide the detailed information with the inquiry	Thickness	0.3-3mm
	Coil width	500-1600mm
	Material	PPGI,CRS
	Coil weight	15T
	Coil I.D	480mm-510mm
	Coil O.D	1600MM
Decoiler and Recoiler	Type	Hydraulic&Motorized
	Coil Width	Max. 1600mm
	I.D	480-510mm
	O.D	Max. 1600mm
	Capacity	15T(Max)
	Scrap winder I.D	420mm
Blade Specifications	dimension	200mmx340mmx15mm
	material	6CrW2Si
	hardness	HRC58-60
Slitting line specifications	Line speed	0-120m/min
	Power	380V/50HZ/3 PH
	Dimension	30M(L)x8m(W)
	Slitting width tolerance	≤±0.05mm/2m
Operation workers needed	1 technician and 2 common workers

Main Components of the slitting line

Hydraulic entry coil car	1 Unit
Hydraulic decoiler	1 Unit
Press and pinch device	1 Unit
Hydraulic head cutter	1 Unit
Side guide device	1 Unit
Slitter	1 Unit
Scrap winder	1 Unit
Tension stand	1 Unit
Recoiler	1 Unit
Hydraulic exit coil car	1 Units

Layout of the whole slitting line

At the dangerous parts, there will be the warning to ask the workers to be careful !

Application

It is applied to do the high speed slitting and rewinding for the CRS, Galvanized steel and stainless steel, HRS and so on.

Use in great production factory with high output

Features:

1. Adopt good PLC control system, high degree of automation.

2. Adopt reliable hydraulic system and hydraulic elements.

3. Electronics adopts famous wrld brands,quite reliable.

4. Adopt good mechanical design with high solidity and strength.

Company Introduction

Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Jiangyin, Wuxi City. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.

Our main products are Steel coil slitting lines, cut to length lines, Flat bar chamfering, deburring and straightening machines, . Our products are supplied to roll forming machine and pipe welding factories and can be also applied to other industries which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field

We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!

Competitive Advantage
