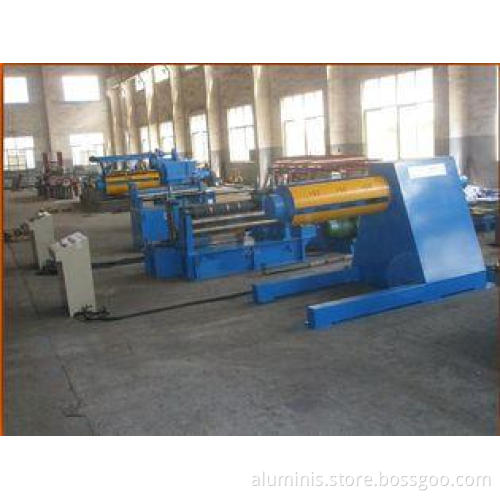

50Hz 3Ph Stainless Steel Slitting Line / Cr Slitting Line For CR / HRC

Specifications:

Application:	CR/HRC/stainless steel /galvanized and so on
thickness of coil plate:	0.5-3mm
width of coil plate:	1250mm
coil weight:	10MT(max)
coil I.D:	ф508
coil O.D:	ф1400mm
the diameter of slitting blade shaft	ф180
slitting blade:	φ180Xφ320X10
material of slitting blade:	9CrSi
the hardness of slitting blade:	HRC58°-60°
recoiler I.D:	φ508
power:	380V/50Hz/3Ph
tolerance of width error:	≤±0.05mm/2M
line speed	0-40m/min
area of the whole machine:	25m(L)x6m(W)
Production orientation	from right to left

1. Hydraulic entry coil car

◆The car can move levelly and vertically, which is convenient for putting the steel coils into the de-coiler.

◆It is driven vertically by hydraulic cylinder with four guide pillars.

◆The level movement is driven by cycloid motor .

2. Hydraulic cantilever un-coiler

◆Supporting steel rolls and uncoiling.

◆It can expand and shrink with hydraulic oil cylinder and fit with the inner hole of the steel coils and is equipped with supporting stand.

◆7.5kw motor drives the coils running and the motor can run right and left to prevent the coils running by inertia.

3. Slitting machine

◆Power part: This is composed of power-stand, decelerator, 15KW direct current motor, gear distributing case, coupler, spindle, connecting-cover, side guide device, etc.

◆Host machine: This is composed of bottom-stand, fixed bracket, big slide, knife pivot (φ180mm, 2pcs), movable bracket, slide, the front and back adjustable device of bracket, knife pivot lifting and pressing down adjustment device.

◆It change the blades through moving out the bracket manually or hydraulically .

4. Scrap winder

◆It consists of base, the shaft and plate of scrap material, friction wheel, supporting wheel chain, chain, decelerator and moment motor.

◆It is used to pack and wind the slitting scrap strips.

5. Tension device

◆It consist of base, pre-dividing shaft, bracket, press shaft, hydraulic damp device and hydraulic shaft lifting the press down device.

6. Hydraulic recoiler

◆It consist of base, bearing frame, recoiler shaft, the expansion device of hydraulic recoiling, the expanded recoiling plate, movable arm bearing, supporting decelerator, 30KW frequency conversion control motor.

◆It uses the hydraulic movable arm with the supporting spacers to ensure the even recoiling quality.

7. Hydraulic exit coil car

◆The car can carry the dividing coils and lift up and down and is movable.

8. Electric control system: electric cabinet and operate table.

9. Hydraulic system: the hydraulic stand, pipes and the connect part.

Delivery

Applications:

ZJX-0.5-3X1250mm simple hydraulic slitting line is used for slitting the CR/HRC/stainless steel /galvanized to prepare for the next process.
