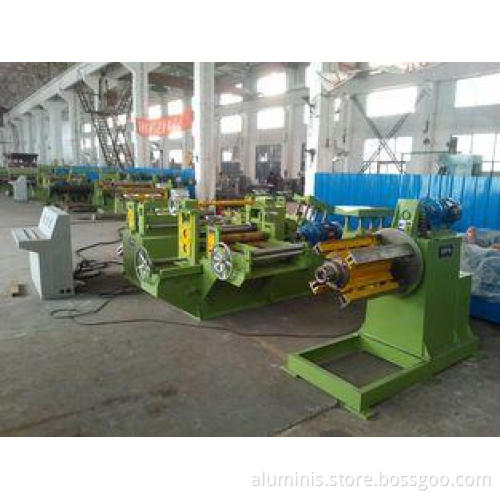

Hydraulic Steel Coil Slitting Line 5MT With 120×450mm Disc Slitting Machine

• Application:CR/HRC/stainless steel /galvanized
• thickness of coil plate:0.5-3mm
• width of coil plate:500mm
• coil weight:5MT(max)
• line speed:0-30m/min

Specifications:

1. Manal expand and shrink de-coiler

1) structure:four rods mechanical manual adjustment with damping device

2) specification:Φ520max×450

3) Capacity:5T(Max).

4) Function: it is used to fix the steel coils and do de-coiling. By using the crane to make the coils on the decoiler and manually expand and shrink is driven by the push of core shaft to tight inner hole of steel coil .The decoiler is equipped with the brake device and adjust manually to make the tension decoiling possible.

2.Φ120×450mm Disc slitting machine

1 )specification of bladesΦ200×Φ120×10 Material:9CrSi ,(6 pcs will be offered by the seller free and a set of spacers and rubber rings).

2) thickness of processable material:δ=0.5-2mm.

3)width of processable material:B≤400mm.

4)electric motor:4KW frequency conversion speed control motor

5) decelerator:JZQ350.

6) It is designed with both the active and passive slitting.

7) the slitting machine is designed with entry guide device and the scrap winder

8)slitting speed:v=30m/min

9) Function: equipped with the side guide device to fix the sheet and prevent the strips jumping when slitting so that to improve the precision. There are active and passive two kinds of slitting to meet the requirements of different thickness steel possible

3. Scrap winder

4. First pre-dividing,and press device(1 unit)

1) Function: when cutting the thin sheets, it is used to establish the back tension and insure the even and tight quality of recoiler.

5. Φ508max×450 Recoiler(1unit)

1).Structure: expand and shrink manually

2).Specification of shaft:Φ508max/Φ478min×550

3).Motor:18.5KW frequency conversion control motor.

4). Decelerator:JZQ500 i=40.17

5).Speed:v=38m/min(average)

6). Function: it cooperates with the first and second dividing device to do the recoiling, make the tension and speed adjustable

6. Electrical control case(1 unit)

1) It controls the speed of the whole line. The main operation table can make the whole line change from high to low speed. And it can also make the plate into the machine manually.

2) The parts mentioned above composed the whole slitting line , make it function is stable and operation is convenient.

Applications:

ZJX-2X400mm simple slitting line is used for slitting the CR/HRC/stainless steel /galvanized to prepare for the next process.

Competitive Advantage:

1. convenient to operate
2. high ratio of performance to price
3. tidy recoilin
