2 Roll Pipe Cold Rolling Mill 30 - 108 mm OD For Copper Rod
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
2 Roll Pipe Cold Rolling Mill 30 - 108 mm OD For Copper Rod
LG80 cold pilger mill for making seamless copper pipe
Quick Detail:
Type: Cold Pilger Mill
Brand name: Hengli
Model number: LG80
Input material: common carbon steel, alloy, nonferrous metal
After-sales service provided: overseas service available
Place of Origin: Jiangsu, China (Mainland)
Used in: the field of Carbon pipes,Non-ferrous metal pipes,and so on.
Description:
Applications:
LG80 two-roller cold rolling mill is applicable to state rolling,such as carbon steel,alloy steel,stainless steel,non-ferrous metal,rare metal and so on,with the characteristics of good turnoff precision,high surface roughness ect.
Specifications:
|
No. |
Name |
LG80 |
|
|
1 |
Shell OD(mm) |
40~114 |
mm |
|
2 |
Shell WT(mm) |
4~13 |
mm |
|
3 |
Shell Length(mm) |
6 |
mm |
|
4 |
Finished tube OD(mm) |
30~108 |
mm |
|
5 |
Finished tube WT(mm) |
2.2~12 |
mm |
|
6 |
Finished tube Length(m) |
15 |
m |
|
7 |
Stroke Frequency of Mill time/min |
60~85 |
time/min |
|
8 |
Stroke of Rolling mill bus(mm) |
903 |
mm |
|
9 |
Feeding Length(mm) |
2.7~10.3 |
mm |
|
10 |
rotation angle |
41° |
|
|
11 |
Roll Diameter(mm) |
375 |
mm |
|
12 |
Power(KW) |
132 |
KW |
|
13 |
Size (L×W×H) |
35×5.4×2.6 |
m |
Competitive Advantage:
We provides custom designed solutions on pilger mills and tube reducers. Our true value is in our expertise in engineering designs through active tri-matrix software and then constructing these designs using our 15+ years of production & maintenance experience. We pride ourselves in offering good engineering solutions to your tube manufacturing process with a commitment to customer satisfaction. Our global customer base covers all alloys such as aluminum, stainless steel, copper, titanium, zirconium, gold, silver, platinum, palladium, and other special alloy materials.
2 Roll Pipe Cold Rolling Mill 30 - 108 mm OD For Copper Rod
Reference photos for main equipment:

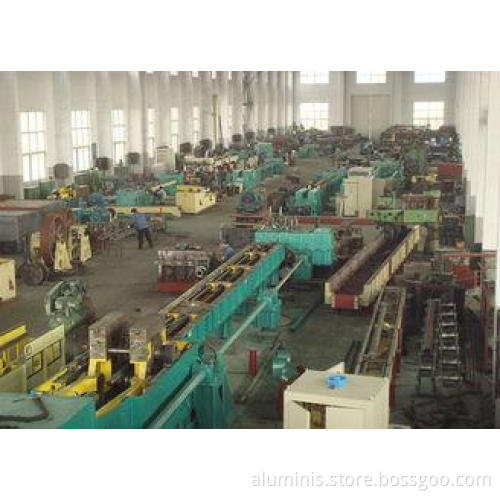

Factory pictures:
Certification:
