LD60 Three-Roller cold rolling mill for seamless tube
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Quick Detail:
Type: cold rolling mill
Brand name: Hengli
Model number: LD60
Input material: common carbon steel, alloy, nonferrous metal
After-sales service provided: overseas service available
Place of Origin: Jiangsu, China (Mainland)
Used in: the field of Carbon pipes, Non-ferrous metal pipes, and so on.
Description:
Applications:
LD60 three-roller cold rolling mill is applicable to state rolling,such as carbon steel,alloy steel,stainless steel,non-ferrous metal,rare metal and so on,with the characteristics of good turnoff precision,high surface roughness ect.
Specifications:
|
No. |
Name |
LD60 |
|
|
1 |
Shell OD(mm) |
32~69 |
mm |
|
2 |
Shell WT(mm) |
＜4 |
mm |
|
3 |
Shell Length(mm) |
5 |
mm |
|
4 |
Finished tube OD(mm) |
30~65 |
mm |
|
5 |
Finished tube WT(mm) |
0.2~3.5 |
mm |
|
6 |
Finished tube Length(m) |
15 |
m |
|
7 |
Stroke Frequency of Mill time/min |
40~80 |
time/min |
|
8 |
Stroke of Rolling mill bus(mm) |
603 |
mm |
|
9 |
Feeding Length(mm) |
2.5~8.3 |
mm |
|
10 |
rotation angle |
48° |
|
|
11 |
Roll Diameter(mm) |
118 |
mm |
|
12 |
Power(KW) |
55 |
KW |
|
13 |
Size (L×W×H) |
28×3.5×1.5 |
m |
Competitive Advantage:
We provides custom designed solutions on pilger mills and tube reducers. Our true value is in our expertise in engineering designs through active tri-matrix software and then constructing these designs using our 15+ years of production & maintenance experience. We pride ourselves in offering good engineering solutions to your tube manufacturing process with a commitment to customer satisfaction. Our global customer base covers all alloys such as aluminum, stainless steel, copper, titanium, zirconium, gold, silver, platinum, palladium, and other special alloy materials.
LD60 Three-Roller cold rolling mill for seamless tube

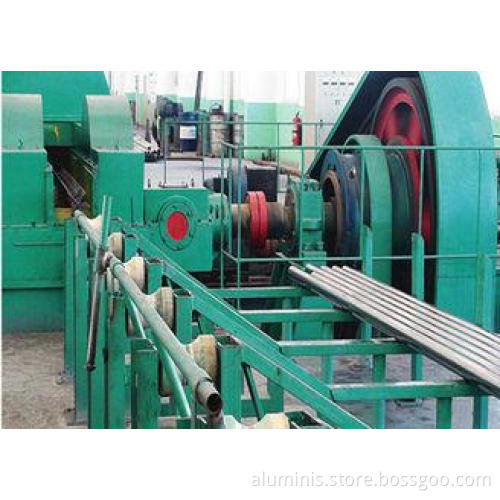

Reference photos for main equipment:
