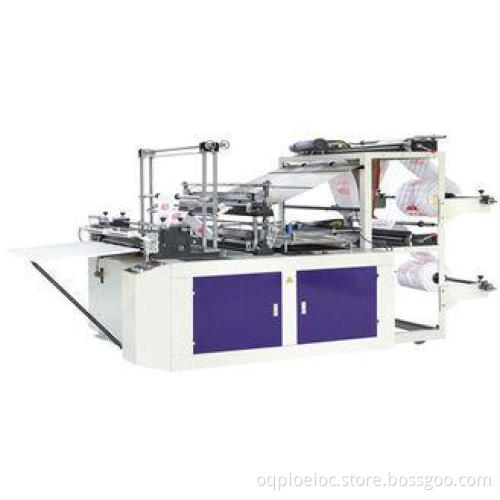

Cold Cutting Sealing Garbage Bag Plastic Bag Making Machine
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | ZHEJIANG |
|---|
Quick Detail:
- CE Certificate
- 220V
- HERO BRAND
- T-shirt bag making,Flating opening bag making
- 400pcs/min
- Full automatic
- 4line
- Cold cutting and sealing
Specifications:
It is used for producing vest bags and flat-opening bags with printing. The main motor adopts frequency conversion motor to save more electricity and regulate speed
more freely. The color code tracker with good performance makes the sealing and cutting length more
accurately and the error smaller .it adopts advanced computer to adjust length more freely and accurately.
Main Technical Variables:
|
Model |
700 |
800 |
|
Width of sealing &cutting(mm) |
680 |
780 |
|
Length of sealing & cutting(mm) |
1200 |
1200 |
|
Speed of bag-making(pc/min) |
400 |
400 |
|
Number of strip(pc) |
4 |
4 |
|
Power of motor(kw) |
3 |
4 |
|
Weight(kg) |
1400 |
1500 |
|
Outline dimension(L×W×H)mm |
6000×1300×1850 |
6000×1400×1850 |
|
Model |
GFQ400*4 |
|
Working width |
10-400mm |
|
Length of bag |
10-900mm |
|
Thickness of the film |
0.001—0.20mm |
|
output |
20-80pcs/min*4 |
|
Making the number of articles |
4(lines) |
|
Motor power |
3kw |
|
Timing Mode |
frequency control of motor speed |
|
workbench(mm) |
3000mm |
|
unwinding |
electromagnetic brake |
|
unwinding Photoelectric eyes |
china |
|
Bronze knife |
Highly pure brass |
|
Cutter unit |
Alloy steel |
|
Gearing |
Belt drive |
|
Electrical parts: |
|
|
Low Voltage |
CHINT |
|
Switch |
CHINT |
|
PLC Computer controller |
China wuxi |
|
g |
|
|
Intelligent Temperature Controller |
china |
|
Electric eye color tracking |
china |
|
Punch
|
china |
|
Weight |
≈1100kg |
|
Dimensions (L×W×H) |
2500×1500×1700mm |
|
Operator |
1 |
About Us :
HERO PLASTIC PLASTIC MACHINE CO.,LTD SINCE 1985 found at the ground south along the sea (Namely China packing City ), is a two more than ten years,enterprise specializing in making complete set of series soft packing equipments.Now the company collect an elitist for been gaged inning the design,manufacturing,examining,debugging,The whole staff of enterprise "Striving for Survival by Quality, Striving for Development by Creative" encourage bottom,under the concern and support of the commerce colleague,pass by not the gradually become to have to completely design to develop the ability, forerunner the production the craft with the stubborn at full split,complete process the equipments,strict examination means,science the factory hoist that manage.
Facing the new century shangwang person with the acute market competition,and fix attention on the future and have a foothold creative,constants identical.Insist"Quality Frist,Customer Supreme"for operate the aim.With the machine product of the high quality,on time the thoughtful service create to set up the good brand,then repay the large customer to support shangwang print machine.Our product is distributed all over the country,and exported to southeast Asia,Middle-east,Russia,South America,Africa,and the product was charmed the client.
