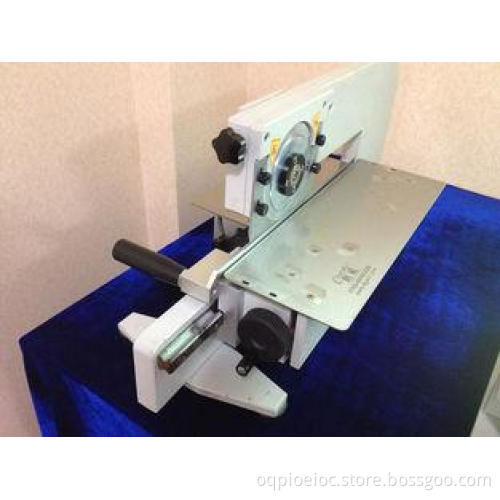

Aluminum Pneumatic PCB Depaneling Machine Manual PCB Separator
PCB Depaneling Machine Specification:
| Model No.: | YSV-2M |
| Machine Dimension: | 342 x 378 x 806 mm |
| Maximum Length of Cutting: | 350 mm |
| Cutting Speed: | 0-400mm / s |
| Cutting Thickness: | 1.0-3.5mm |
| Voltage: | Manual |
| Weight: | 40kg |
PCB Depaneling Machine Feature:
1. Working tips: PCB remain one position, move blade. this will avoid component damage.
2. Hand control the moving rate.
3. Accuracy distance adjusting between upper and lower blade.
4. Customized cutting length is available, up to 610mm.
5. Normally the blades can be used 1 year.
6. Accessories are available for purchase
PCB Depaneling Machine Application:
- Aluminum base board
- Copper substrate
- FR4
- Glass fiber board
PCB Depaneling Machine Maintenance:
1. Take off the power botton and clean the machine after finish working.
2. Be careful to protect the upper and lower blade.
3. Move the blades and protect them with machine oil.
4. Check the screw fastening time to time
YuSH Factory Delivery:
By air / sea / Fedex / DHL / UPS
Our forwarder partner or yours
Packing with wooden case
Packing fee: USD50 / pc
