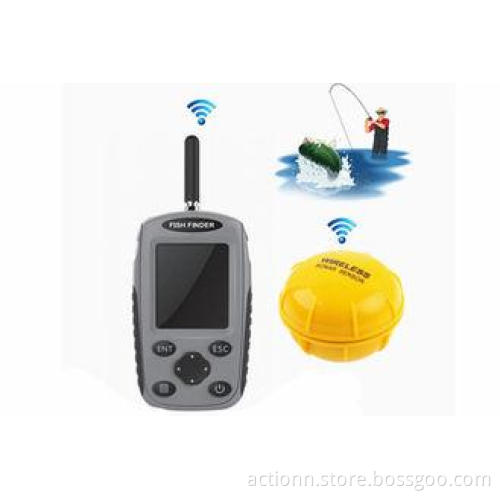

Durable HD Portable Sonar Fish Finder Camera Fishing Equipm

The product specifiation:

1. Display

Display: Dot Matrix LCD
Display Size: 50x45mm
Display Dot Number : 128*96
Display Contrast: 10~100%
Backlight: White LED Backlight

2. Sonar & Radio

Depth Range: 2-120Ft/0.6-36M
Wireless Operating Range : 260ft/80m
Sonar Frequency: 125KHZ
Sonar Beam Angle: 90 degree
Radio Frequency: 433.92 MHz
Operational Temperature: -10 ~70℃

3. Power Supply:

Mainframe : Lithium battery 3.7V
Transducer: Polymer battery 3.7V

* Accessories:

The following items are included in the product:
1) A wireless remote sonar sensor
2) A handheld wireless receiving host
3) A copy of User’s Guide
4)A USB charge cable

The Product Maintenance:

In order for your fih fider more attractive and durable, we recommend
you follow the below steps :

1. For the shell

Cleaning the product's outer case with a cloth dipped mild detergent
except the screen, and then dry it up.

2. For the Lens

Use a piece of soft cloth to clean the lens. A little fresh water or eyeglass cleaner can be used if needed. If stubborn dirt or oil stains remains on the
screen , do not be wiped with force , not scratch the surface .This action
maybe scratch the lens.

3. For storage

Never place your product in a wet or high-temperature or low
temperature environment or on a metal board. Store the product in an
insulation and dry place. Remove the battery before storage!
4.Working temperature
The low temperature will cause damage to the electronic part, the
working environment temperature not lower than -10 (14 degrees
Fahrenheit).
