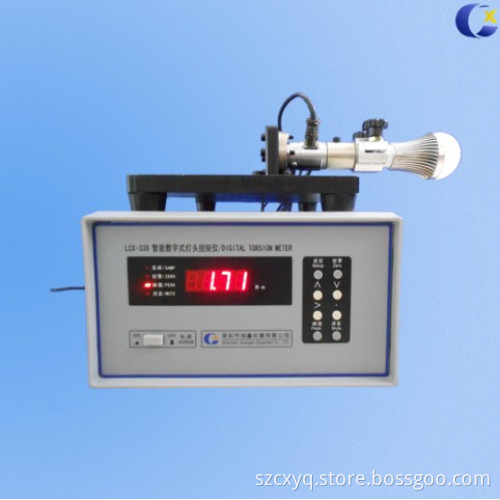

IEC60061 Digital LED Light Base Torsion Meter for lamp cap torque tester

Key words: light base Torsion Meter, Lamp Cap Torque Meter, lamp cap torque tester

Torsion Meter is a newly developed intelligent product with microprocessor built-in.

Characteristics:

1) It can measure the clockwise and anti-clockwise torque of lamp cap. And it can preset upper limit alarm. Auto save data after system shutting down.

2) Instrument has the function of zero point calibration. The zero point is very steady. Instrument uses 4 digits of number to display. So it is of high accuracy and high stability.

3) Double watchdogs designed inside to ensure the instrument high reliability and will not shut down under complicated environment.

4) Instrument is convenient to be used because of several clamps of lamp caps such as E27/E26, B22d, E14/E12, G13/G5 and so on.

5) Conform to Chinese and international standard.

Specification:

Range	0~10N•m
Accuracy	≤1%
Repeatability	≤0.5% FS
Linearity	≤0.5% FS
Lag	≤0.5% FS
Over loading	120% FS
Temperature compensate range	-10°C~60°C
Requirements for environment: Working temperature	25±5°C Relative humidity: ≤65%R.H Power: AC 220V±10V, 50Hz±1Hz
Permissions for environment	Working temperature: 0-40°C Relative humidity: ≤75%R.H Power: AC 220V±10%, 50/60Hz
Store condition	Temperature -20~50°C
Humidity	<75%R.H
Dimension	333mm×114mm×307mm
Weight	6kg
Power	15VA
