15 Inch 1000nits Sunlight Readable Lcd Display TFT Color M
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

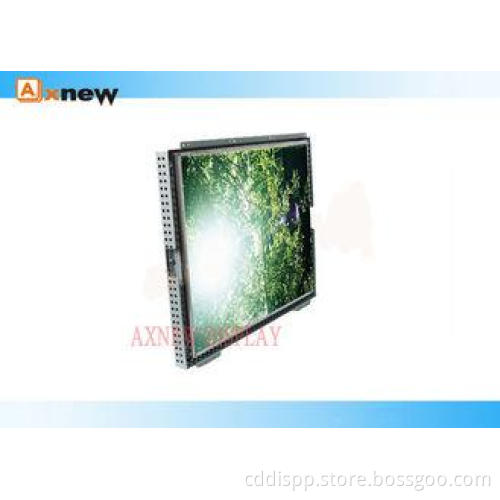

15 Inch 1000nits Sunlight Readable Lcd Display TFT Color Monitor With Capacitive Touch Option
15 inch sunlight readable industrial LCD open frame monitor with VGA DVI input slim and thin design for 15’’ LCD( NO TOUCH), 1000nits high brightness LCD widely used for Outdoor Automatic equipments, Advertising , vending embedded system, Kiosks application etc.
Quick Details:
Model: AXD-15OPN2P1-VH2
Screen Size:15’’
Screen format: 4:3
Display Resolution(pixel):1024X768
Contrast Ratio:500:1
Brightness:1000cd/m^2
Storage temperature : -20℃~80℃
Input signal: VGA DVI
Power Input: AC100~240 V/DC 12V
Product status: Stock
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ;No touch screen, resistive touch if needed
6. 15 inch high brightness open frame LCD for application control , advertising player ,campus and industrial terminals etc
|
Display Specifications |
|
|
Display |
15" industrial open frame high brightness display |
|
Model Name |
AXD-15OPN2P1-VH2 |
|
Active Display Area (mm) |
304.1(H)x304.1(V) |
|
Pixel Pitch (mm) |
0.297(H)x0.297(V) |
|
Resolution (Pixel) |
XGA (1024X768) 16.2M Color |
|
Brightness (CD/m^2) |
1000nits |
|
Contrast Ratio |
500:1 |
|
Viewing Angle (CR >=10) |
160/140 |
|
Power consumption |
15.3W typical, normal operation |
|
Touch Screen |
Resistive;RS232/USB(Optional) |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA,DVI-D |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Steel Metal chassis & Galvanized / Black color |
|
Dimensions |
357.3 x 292.0x 42.8 (mm) |
|
Mounting |
Edge fixing holes |
|
Power source |
AC 100~240V/ 12V DC |
|
Environment Specifications |
|
|
Operating Temperature |
-20~70℃ |
|
Storage Temperature |
-30~80℃ |
|
Rating |
Facilitate installation of the demolition,solid portfolio |
|
Ordering Information |
15” industrial open frame high brightness with VGA input |
Packaging & Delivery
|
Packing details |
1x 15 inch Sunlight Readable LCD display; Packed in 5pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
|
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
