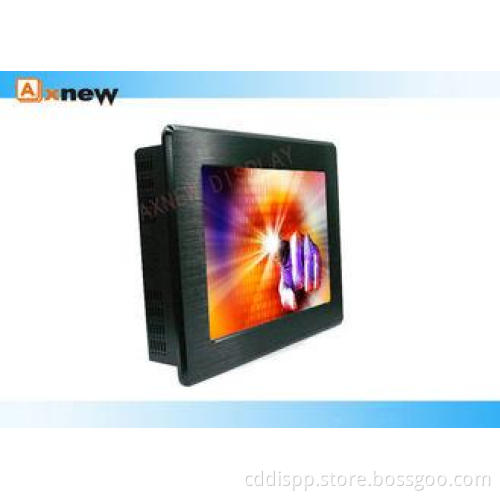

Panelmount XGA 15 Inch TFT Industrial LCD Display With Protective Glass VGA+DVI
Quick Details:
15 inch 4:3 format industrial LCD monitor with VGA input Aluminum front bezel with rugged frame design. such as Automatic equipments, Gas station, advertising embedded system etc.
Features and Advantages
1.New and Industrial A grade perfect panels TFT LCD with LED Backlight
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment, Aluminum Front Bezel with rugged housing
4. Industrial design to protect the LCD screen, mounting on the outdoor application
5. VGA DVI interfaces
Display Specifications |
|
Display | 15" Color TFT Industrial Monitor |
Model Name | AXD-15OPIPN1P1 |
Active Display Area (mm) | 304.1(H)x228.1(V) |
Pixel Pitch (mm) | 0.297(H)x0.297(V) |
Resolution (Pixel) | VGA (1024x768)6 bit + FRC |
Brightness (CD/m^2) | 250cd/m^2 ; 350cd/m^2 (Optional) |
Contrast Ratio | 500:1 |
Viewing Angle (CR >=10) | 160/140 |
Power consumption | 28 W typical, normal operation |
Touch Screen | Resistive, IR Touch ;RS232/USB(Optional) |
OSD Control | On the back side |
I/O Connectors | 1x12v,1XVGA,DVI-D |
Power Input | DC 12V,4A 48W |
Mechanical Specifications |
|
Construction | Aluminum front bezel &Black Color |
Dimensions | 378.4x 295.4x 56.0(mm) |
Mounting | Embedded ,vesa75x75;100x100 Wall Mounting Optional |
Power source | AC 100~240V/ 12V DC |
Environment Specifications |
|
Operating Temperature | -30~80℃ |
Storage Temperature | -30~85℃ |
Rating | Facilitate installation of the demolition,solid portfolio |
Ordering Information | 15” IP Monitor with VGA input and power adapter |
Packaging & Delivery
Packing details | 1x 15 inch Industrial LCD display; |
Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
