High Brightness 6.5 Inch VGA Sunlight Readable LCD Display
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
6.5 inch TFT Industrial LCD Display 640x480 AC100~240V DC In 12V For devices WM

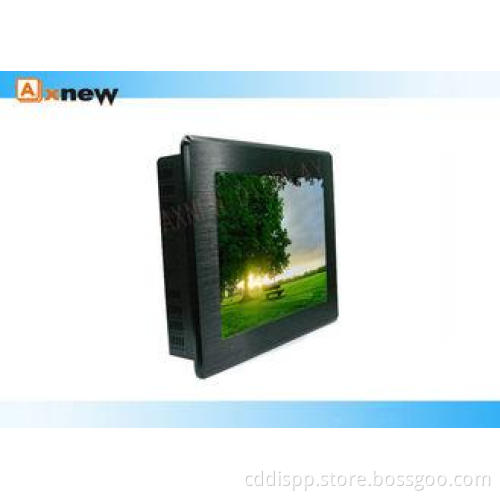

6.5 inch high brightness industrial LCD monitor with VGA input ( No touch) Aluminum front bezel with rugged frame design. 500nits for outdoors application, such as Automatic equipments, Gas station, advertising embedded system etc.
Quick Details:
Model: AXD-06OPIPN1P1
Screen Size:6.5’’
Screen format: 4:3
Display Resolution(pixel):640x480
Contrast Ratio:500:1
Brightness:500cd/m^2
Storage temperature : -30℃~80℃
Input signal: VGA
Power Input: AC100~240 V/DC 12V
Product status: In Production
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment
4. Industrial design to protect the LCD screen, mounting on the outdoor application
5. VGA interfaces ;No touch screen
6. 6.5 inch Industrial LCD monitor for Gas application control and industrial terminals etc
7. Low consumption with high brightness LCD ,800nits are the second choice for you.
|
Display Specifications |
|
|
Display |
6.5" Color TFT Industrial Monitor |
|
Model Name |
AXD-06OPIPN1P1 |
|
Active Display Area (mm) |
132.48 (H)x99.36(V) |
|
Pixel Pitch (mm) |
0.207(H)x0.207(V) |
|
Resolution (Pixel) |
VGA (640X480);16.2M/262 colors |
|
Brightness (CD/m^2) |
500cd/m^2 |
|
Contrast Ratio |
500:1 |
|
Viewing Angle (CR >=10) |
140/120 |
|
Power consumption |
4.32 W typical, normal operation |
|
Touch Screen |
Resistive ;RS232/USB(Optional); |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Aluminum front bezel &Black Color |
|
Dimensions |
192.0x 165.0x 37.0 (mm) |
|
Mounting |
Embedded ,vesa 75x75(100x100) Wall Mounting Optional |
|
Power source |
AC 100~240V/ 12V DC-4A |
|
Environment Specifications |
|
|
Operating Temperature |
0~80℃ |
|
Storage Temperature |
-10~80℃ |
|
Rating |
Facilitate installation of the demolition, solid portfolio |
|
Ordering Information |
6.5” IP Monitor with VGA input and power adapter |
Packaging & Delivery
|
Packing details |
1x 6.5 inch Industrial LCD display; Packed in 5 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
|
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
