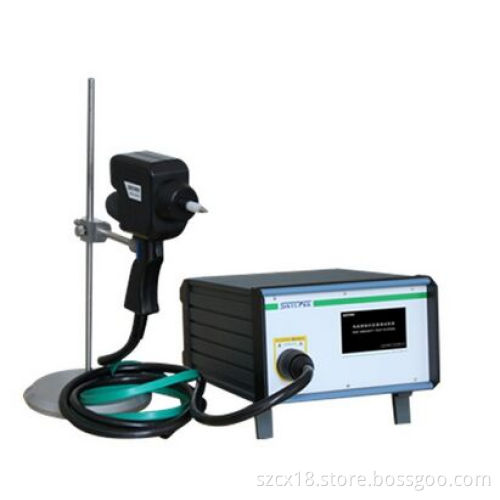

IEC61000 Electrostatic Discharge Simulator

ESD simulator (Electrostatic Discharge Generator or Electrostatic Gun) is in full compliance with IEC 61000-4-2, EN61000-4-2, ISO10605, GB/T17626.2, GB/T17215.301 and GB/T17215.322. The ESD generator is designed for the assessment of electrical and electronic equipment to withstand ESD performance. ESD-5020BX/ESD-4020AX has LCD display in both English and Chinese, they equipped with an infrared remote control which can allow you do the test in some special place.
Specifications:

Product Model	ESD-4020BX	ESD-4020AX
Output Voltage	0.5~20kV±5%	0.54~30kV±5%
Polarity	Positive/Negative	Positive/Negative
Energy Storage Capacitance	150pF±10% (Replaceable)	150pF±10% (Replaceable)
Discharge Resistor	330Ω±5% (Replaceable)	330Ω±5% (Replaceable)
Current Rise Time	0.6~1ns	0.6~1ns
Testing Functions	Single, Count, 20pps, Air, Contact, IEC level	Single, Count, 20pps, Air, Contact, IEC level
Trigger Mode	MANUAL/AUTO	MANUAL/AUTO
Numbers of Discharge	1~9999	1~9999
Repetition	0.05s~99.99s	0.05s~99.99s
Working Power	AC220V(Option 110V)±10%, 50/60Hz	AC220V(Option 110V)±10%, 50/60Hz
