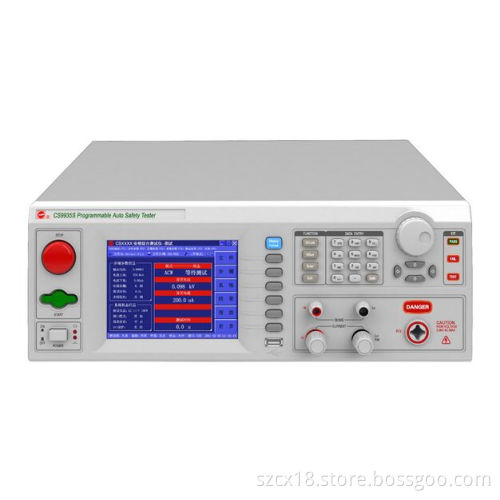

CX-9935S Electrical Auto Safety Tester

CX-9935S Electrical Auto Safety Tester

This series of Programmable Auto Safety Analyzer is designed on the basis of high-speed MCU and large-scale digital circuit. The output voltage, output voltage rise and fall and the frequency are completely controlled by the MCU. It can display the breakdown voltage and current value at the real time . Besides, it is with software calibration function. Equipped with standard PLC and RS232C interface, optional RS485 interface, USB device, USB Host, GPIB, it can be composed of an integrated test system with computer or PLC. It is capable of measuring the complicate safety requirements with easy installation and operation, and is the finest auto safety tester to increase production test efficiency. It measures the household appliances, meters & instruments, lighting equipment, motors & electric heating appliances, computers and other electronic products quickly and accurately.

Features:

1. Integrating AC Hipot, DC Hipot, insulation resistance, grounding resistance, leakage current, in one in one tester

2. DDS Technology,It generates accurate, stable, pure and low distortion sine waveform.

3. Rise time and fall time can be regulated which meet the different requirements of different users.

4. Support external power, enlarge the output power and applied area.

5. The leakage current human body network can be connected externally

6. Multi channel scanner interface. It can be connected up to 64 ways scanners externally.

7. Two ARC modes current mode and grade mode.

8. Test results can be saved simultaneously and it support complete data statistics.

9. Two frequency 50 Hz,60 Hz

10. User-friendly operation interface, easy operation for digit key or plate to input

11. Detailed help guideline, increasing test efficiency.

12. To get knowledge of the details for steps and system status, test step and system status information can be displayed simultaneously.

13. Character type file can be input, the maximum length is 12 characters.

14. Chinese & English operation interface.

15. New memory set up, allowing for flexibility in step and memory numbers .Storage of 50 Tests Setups with 40 Steps per setup,25 tests setups with 80 steps per setup,10 tests setups with 200 steps per setup,5 tests setups with 400 steps per setup

16. Average value,True RMS power detection waveform mode.

17. The minimum resolution of ACW is 1μA,1V,The minimum resolution of DCW is 0.1μA,1V, The minimum resolution of IR 0.01MΩ,1V
