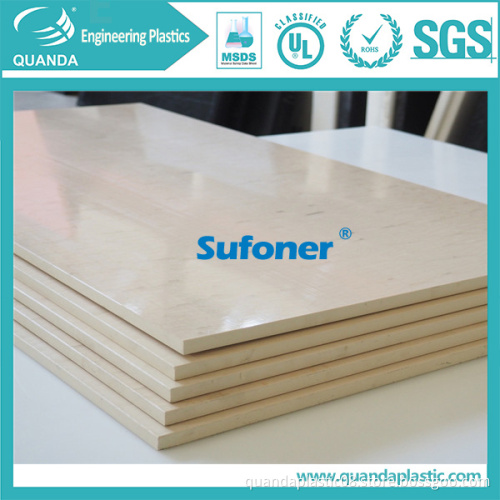

Good quality of PPS Sheet

USD5

500-49999 Kilogram
USD100

≥50000 Kilogram

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 500 Kilogram

Min. Order:: 500 Kilogram

Delivery Time:: 20 Days

Transportation:: Ocean, Air

Port:: SHENZHEN, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	500T/month
Supply Ability:	500T/month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	SGS
Transportation:	Ocean,Air
Port:	SHENZHEN,YANTIAN

Product Description

Sufoner® PPS Properties Data Sheet

①Raw material description
Standard Grade:	Extrusion grade		Appearance color:	┄
Application:	Processing materials,sheet,rod,electronic components,pump and valve, axle sleeve and bushing
Remarks:	Charactors: outstanding for high temperature resisatnce,good dimensional stability,electrical property,chemical resitance,inflaming retarding,arc resistance

②Raw material technical datasheet
Property item		Test conditions	Testing method	Testing data	Unit
I.Physical property
Density		23°C	ISO 1183	1.35	g/cm3
Shrinkage		┄	ISO 2577	1.5	%
Water absorption		24h dipping(23°C)	ISO 62	0.04	%
Flammability class		1.6/3.2MM	UL94	V-0	Class

Ⅱ.Mechanical property
Tensile strength		┄	ISO 527-1.2	90	MPa
Breaking strength		┄	ISO 527-2	75	Mpa
Elongation at break		┄	ISO 527-2	4	%
Flexural strength		┄	ISO 178	140	MPa
Flexural modulus		┄	ISO 178	3700	MPa
Hardness-Rockwell		┄	ISO2039-2	95	M (Scale)
Jane stent impact strength		┄	ISO 179/1eA	25	kJ/m2
Jane stent impact strength(chipped)		┄	ISO 179/2eA	3.3	kJ/m2

Ⅲ.Thermal property
Thermal deformation temperature		1.80MPa	ISO 75-1,2	110	℃
Max. working temperature( short time )		2h	UL746B	260	℃
Max. working temperature(long time)		┄	UL746B	220	℃
Melting temperature		┄	ISO 11357-3	280	℃
Coefficient linear thermal expansion		23°-150°C	ISO 11359	50	x10-6 /K

Ⅳ.Electrical property
Dielectric constant		1MHz	IEC 60250	3.6	┄
Dielectric loss angle tangent		1MHz	IEC 60250	0.004	┄
Dielectric strength		┄	IEC 60243	17	kV/mm
Volume resistivity		┄	IEC 60093	1013	(Ω) * cm
Surface resistivity		┄	IEC 60093	1015	(Ω)
Electric arc resistance		┄	IEC 61621	115	sec

NOTE: 1 g/cm3 = 1,000 kg/m3, 1 Mpa = 1 N/mm2, 1kV/mm = 1 MV/m
Statement:
NOTE: The information contained herein are typical values intended for reference and comparison purposes only. They should NOT be used as a basis for design specifications or quality control. Quanda will not provide any legally binding guarantee of certain properties, or any suitability.

NOTE: The information contained herein are typical values intended for reference and comparison purposes only. They should NOT be used as a basis for design specifications or quality control. Quanda will not provide any legally binding guarantee of certain properties, or any suitability.
