IP65 / IP54 Front maintenance P16 outdoor led illumination
  • IP65 / IP54 Front maintenance P16 outdoor led illumination
IP65 / IP54 Front maintenance P16 outdoor led illumination

IP65 / IP54 Front maintenance P16 outdoor led illumination

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen China
Product Description
Product Description

IP65 / IP54 Front maintenance P16 outdoor led illumination panel advertising screen

2011 Asian cup LED supplier

1. 36 months warranty. And life long free tech-support

2. CE and RoHS approval

3. Front accessible maintenance

4.Excellent contrast ratio, high resolution/high definition

5. High brightness and perfect uniformity

6.Waterproof IP65

7. Available models: P12, P16, P20mm, P25mm, ect.

Application:

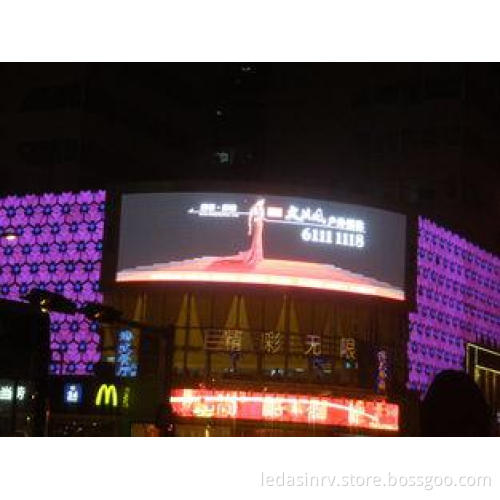

Our products have been widely used in venues as banks, stock exchange centers, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, city squares, courts, schools, restaurants etc;

Advantage:

1. Wide application & short ROI time:

Commercial advertising, Stadium perimeter, mobile media, shopping mall, bank & stock exchange, train & bus station, air port,

2. High Contrast ratio: 4000:1

This is a very high level to ensure a vivid image of our LED display screen system.

3. First-class LED chip:

Supplied by high strictly selected LED chip to ensure the long life time and high brightness of our LED display screen system

4. Clear vivid image quality:

Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your investment.

5. Long-term Brightness:

6500 nit brightness capacity throughout product lifetime

6. Easy Installation & operation:

Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system

7. Easy maintenance:

Front and rear cabinet access maintenance

SBO-P16 (Pitch 16mm outdoor full color)

Colour temperature

5000~9000 k

Pixel structure

φ5 oval lamp, 2R1G1B

Pixel pitch

16mm

Pixel density

3, 906 dots/㎡

Luminance

6, 500cd/㎡

Module dimension

256mm(W) * 128mm(H)

Module resolution

16 pixel(W) * 8 pixel mm(H)

Cabinet dimension

1024 * 768mm

Cabinet resolution

64 * 48

Cabinet area

0.786 sq. meter

Optimal visual distance

>15m

Visual angel

110 / 50 degree (H/V)

Max power consumption

≤1000w / ㎡

Average power consumption

≤600w / ㎡

Brightness adjustment

Adjust according to the environment

brightness software (0%-100%adjustable)

Gray scale

point by point 4096 gray grade levels of

each color, 16 bits γ correction available

Drive mode

Static, constant current

Frame frequency

≥60HZ

Refresh frequency

≥1000HZ

Input voltage

AC 90~260 volts

Operation temperature

﹣40℃~ +65℃

Operation humidity

10%~90%

Input signal

S-video, RF, RGB, Yuv, YC, composite…

Control system

DVI card + master control card + receiver card

MTBF

>5000 hrs

Life span (50% brightness)

100, 000 hrs

Malfunction dot rate

1/10000

Ingress protection rate (Front/ rear)

IP65 / IP54

Cabinet material

Epoxy paint coated, aluminum / iron

Application:

Rental / Permanent installation available
