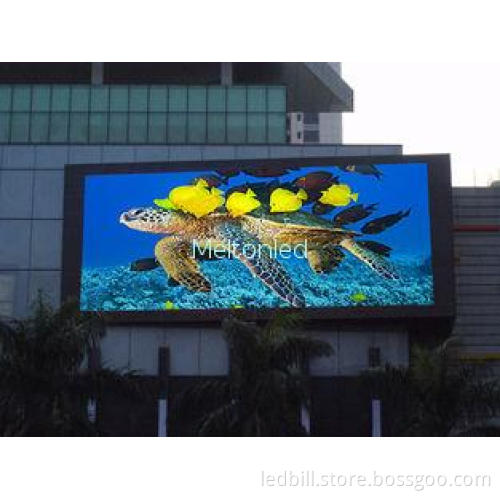

48bit Colors Outdoor Advertising Led Display P16 High Resol

Module Size(W * H)

256mm*128mm

Pixel Configeration

2R,1G,1B

Pixel Pitch

16mm

Resolution(W*H)

16dots*8dots

Pixel Density

3906 dot / m²

Driving Method

static Current

Cabinet Size(W * H)

1024mm*768mm

Module Qty

20pcs

Cabinet Resolution(W * H)

64dots*48dots

Cabinet Pixel

4096

Weight

56kg/pc

Area

1.23(m²)

Avarage Power Consumption

200W/m²

Max Consumption

600W/m²

Operating Humility

10% ~ 90% RH

Oprating Temprature

-20°C ~ +60°C

Optimal Viewing Distance

20m-200m

Display Color

1,070,000,000

Gray Scale

65536grade

Brightness control

256grade

Frame Frequency

60HZ

Refresh Speed

>2000HZ

Power Supply

220V/50HZ

MTBF

≥10,000hours

Life Span (50% brightness)

≥100,000hours

Control Mode

synchronization with PC

Input Signal Format

VGA,DVI,RGBHV,PbPr(HDTV),Composite,S-Video,TV

Operating System

WINDOWS(98,2000,XP,Vista)
