P6 1R1G1B Full Color Energy - saving Electronic Indoor Led

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China

Product Description

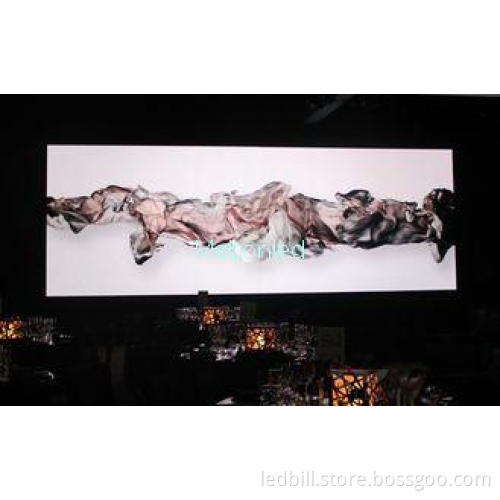

P6 1R1G1B Full Color Energy-saving Electronic Indoor Led Screens SMD 3in1

Description:

Safety. Using the low voltage DC so that no matter the elderly and children can safely operate without potential safety hazard.

Softness. Using PCB as the substrate and can apply to various advertising model requirements.

Long lifespan. The normal operating time is 100000 hours. If worked all the day long, it would work

for at least 10 years.

Energy conservation and environmental protection. Using the environmental materials and

low power (0.04W-0.08W) so that cannot result in waste and pollution.

Easily installation. Using attaching clamp, wire casing, iron wire, iron net and can install on all kinds

of undertake surface. It can also be installed by the double-sided adhesive because of the light weight.

Pure color. Using the high bright SMT and the color is pure, downy and no glare

Applications:

advertising media, sports stadiums, airport station integrated information dissemination,

business establishments, public area.

Specifications:

SMD indoor led display
1) high brightness, rich color
2) energy save and easy operation
3) good image for advertising...

Catalog:SMD P6 indoor led screen

Ph6 mm outdoor smd 3-in-1 full color LED display,

LED Video displays are designed to meet customer specific requirements, we can provide full colour,

PLED devotes to a set of complete solution for your local led project.

Specifications:

Parameter	Value	Unit
Application	Indoor
Pixel pitch	6	mm
Brightness	1800	nit
Panel dimensions(W×H×D)	768×768×70	mm
Panel materail	Steel
Weight	12	kg
Pixel configuration	3-in-1 SMD
Refresh rate	≥1800	Hz
Pixel matrix per panel	160×128	pixels
Pixel density	27777	pixels/sq.m.
Gray scale per color	8192	level
Colors	549	Billion
Viewing angle(H/V)	120/120	deg.
IP rating(Front/Rear)	IP40/IP21
Power consumption(max/avg)	680/230	W/sq.m.
Input voltage(AC)	110~240	V
Operating temperature	﹣10 ~+ 40	℃
Operating humidity	10%~90%
Source compatibility(with video processor)	AV,S-Videom,VGI,DVI,HDMI,SDI,DP
