Full Color SMD P6 Indoor Led Screen , 1R1G1B CE High Bright

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China

Product Description

Full Color SMD P6 Indoor Led Screen , 1R1G1B CE High Brightness Display

Specification:

1: CE&RoHS

2: High definition

3: Energy saving 35%

4: Near vision distance

Applications:

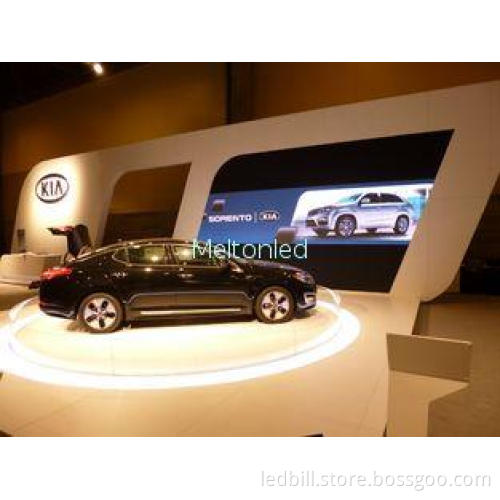

advertising media, sports stadiums, airport station integrated information dissemination,

business establishments, public area.

Specifications:

SMD indoor led display
1) high brightness, rich color
2) energy save and easy operation
3) good image for advertising...

Catalog:SMD P6 indoor led screen

Ph6 mm outdoor smd 3-in-1 full color LED display,

LED Video displays are designed to meet customer specific requirements, we can provide full colour,

PLED devotes to a set of complete solution for your local led project.

Specifications:

Item	Technical Specification
Pixel	Pixel pitch: 6mm
	Pixel configuration: 1R1G1B
	Brightness: Red: 300mcd Green: 850mcd Blue: 180mcd
	Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm
	Module resolution: 16×8 pixels
Module	Module size: 192mmx96mm
Module	Cabinet size: 768mm×768mm×150mm
Cabinet	Cabinet resolution: 16384 pixels
	Cabinet material: Steel
	Gross weight: 42kg
	Module quantity: 24pcs= 4(w) x 6(h)
	Power consumption : Max.:500W/m² Everage: 900W/m²
Screen parameter	Drive method: 1/8 scanning
	Brightness: 2000-3000cd/m² adjustable
	IC driver: MBI 5026
	Density: 27777 pixel/m²
	Whole display flatness: ≤ 1mm juncture
	Best view distance: ≥ 6m
	Viewing angle: Horizontal: 120° Vertical: 60°
	Humidity(RH): ≤ 90~95%
	Working temperature: from -30℃ to +60℃
	Working voltage: AC220V/110V±10%
	Refresh frequency: 2400Hz(Zdec) ≥ 300Hz(Linsn)
	Frame rate: ≥ 60Hz
	Protection grade: IP45
	MTBF: More than 10000hrs
	Life time: 100,000 hrs
Control system	Control system: Linsn
	Signal interface: DVI
	Communication distance: Internet cable: ≤120m / Fiber cable: 1000m
	Systems operating platforms : XP,WINDOWS(WIN95,WIN98,WIN2000)
