Brushed IP68 64 keys industrial keyboard with flat keys and

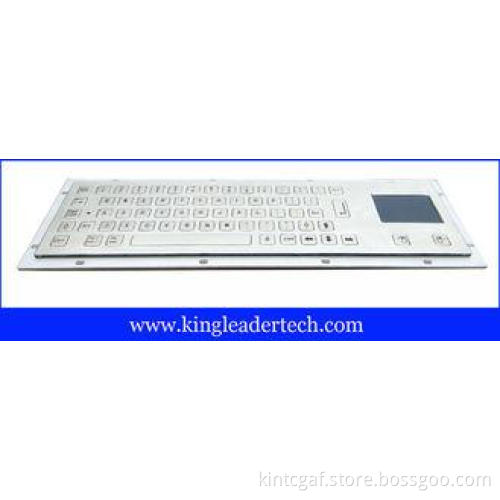

Brushed IP68 64 keys industrial keyboard with flat keys and touchpad MKB-64FA-TP

Key Features:

1) 64 keys, with integrated touchpad, panel mount
2) Flat/non-protruding short travel(0.45mm)key, excellent tactile feel;
3) Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places;
4) Built from stainless steel, high vandal-proof
5) Dust-proof and liquid spill proof, meet IP65 requirement
6) PS/2 or USB interface, easy to plug into computers
7) Customizable

Specifications:

Material

- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Key cap: Flat/non-protruding short stroke key, raised Braille and etched graphics
- Touchpad cover: Composite

Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B

Environmental Characteristics

- Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6

Mechanical Data

- Actuation force for key:150±15g
- Key travel: 0.45mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4

Touchpad

- Power supply voltage: 5 VDC ± 10%
- Current rating (active mode): 17 mA
- Interface: PS2 or USB
- X/Y position sensing resolution: 40 counts/mm(1000dpi)
- X/Y position reporting: Relative
- Tracking speed: Maximum 1, 016 m/sec

Operation system

- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Weight and dimension

- Weight: 1.8 kg

- Dimension

Front panel: 392.00 x 110.00 mm
Back panel: 416.00 x 134.00 mm

Thickness: 20.10mm
