PP Waterproof Corrugated Plastic Panels Construction Protection / PP Hollow Board
Specifications

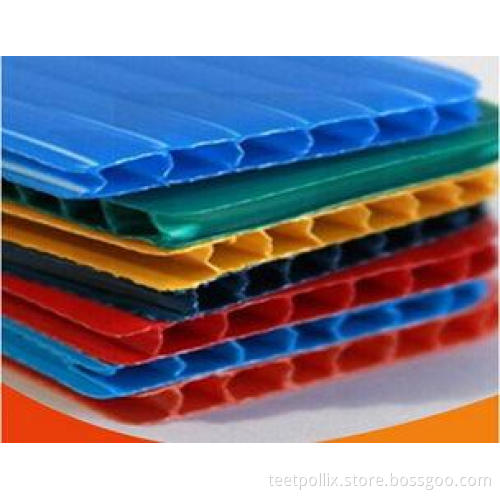

PP hollow sheet
Size:1220*2440mm
Thickness:2~10mm
Color:White,Transparent,Red,Yellow,Blue,Green,etc
PP hollow sheet
Introduction:
PP hollow sheet are light, high strength, anticorrosive, waterproof and moisture proof, etc. They can be used to display, screen printing, packaging. S-corrugated board is the one of Oursign's special products. The package box made of this media is with high intensity and long durability. And this media can be reused and easily be cleaned. So it can also be made to the products with the function of electric conduction, and made to the products which can anti static and anti UV. It's widely used in the field of advertisement, package and electronics.
Features:
1. Light weight.
2. High strength.
3. anti-corrosive.
4. water proof and moisture proof.
5. Weather resistant (UV, rain, typhoon and frost).
6. anti-static.
Application:
1. Billboard .
2. screen printing.
3. Exhibition booth decoration.
4. Displays (indoor and outdoor).
5. packing box.
6. Insulator, cushion material, tray.
Specification:
|
Physical property |
Value |
||||||||
|
Thickness ±0.1(mm) |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
Width(mm) and Length(mm) |
≤2050,limitless |
≤1250,limitless |
|||||||
|
Weightg/m2) |
450±10 |
500±10 |
700±10 |
900±10 |
1200±20 |
1400±20 |
1600±20 |
1800±20 |
2000±20 |
|
Tearing Strength at break (N/mm) |
≥230 |
≥260 |
≥300 |
≥350 |
≥400 |
≥450 |
≥510 |
≥580 |
≥650 |
|
Elongation rate at break% |
≥52 |
≥52 |
≥52 |
≥52 |
≥52 |
≥52 |
≥52 |
≥52 |
≥52 |
|
Surface Compressive StrengthN/cm2 |
≥800 |
≥1000 |
≥1500 |
≥2500 |
≥3000 |
≥3500 |
≥4000 |
≥4500 |
≥5000 |
|
Perpendicular Compressive StrengthN/cm2 |
≥95 |
≥150 |
≥350 |
≥500 |
≥600 |
≥700 |
≥750 |
≥800 |
≥1000 |
|
Tearing StrengthN/mm |
≥50 |
≥60 |
≥80 |
≥100 |
≥130 |
≥150 |
≥170 |
≥190 |
≥210 |
|
Colors |
Transparent ,White,Red,Yellow,Blue,Green, Black,Gray. |
||||||||
