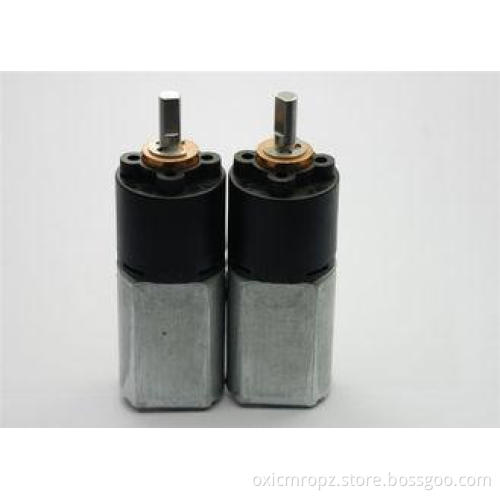

ROHS , 2 Speed Planetary Micro Worm Gearbox with High Speed
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
ROHS 2 Speed Planetary Micro Worm Gearbox High Speed Reducing Ratio
Quick Details
|
Technical Parameter |
diameter |
22mm |
|
motor |
DC brush motor |
|
|
noise level |
less than 40dB |
|
|
life time |
500 hours |
|
|
working temperature |
-40 to 95℃ |
|
|
Axial clearance |
<0.3mm |
|
|
Certification |
ROHS/ISO9001/ISO14001/SGS/TS16949 |
|
|
Suitable for |
Automatic door & window, Medical device, Rotating advertisement, Automatic teller machine, Vending machine, and etc. |
|
|
OSD Language |
English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean |
|
|
The basic specifications for reference only, specifications can be customized. |
||
Specifications:
| Model | At Rated Load | Max Rated Torque of Gear Box | Max Instant Torque of Gear Box | Transmission Reduction | Overall Length L | Gear Box Length L1 | |||||
| Speed | Current | Torque | Power | ||||||||
| rpm | mA(MAX) | gf.cm | mN.m | W | gf.cm | gf.cm | Ratio | Stage | |||
| ZWMD022022-16 | 435 | 220 | 452 | 44 | 2 | 2000 | 6000 | 16/1 | 2 | 61.5 | 23.2 |
| ZWMD022022-19 | 367 | 220 | 537 | 53 | 2 | 2000 | 6000 | 19/1 | |||
| ZWMD022022-23 | 309 | 220 | 637 | 62 | 2 | 2000 | 6000 | 23/1 | |||
Main Products:
1) Precise component and assembly of plastic and metal powder injection;
2) Precise motor gear box reducer: diameter 4-40mm,
Output speed: 5-2000rpm,
Reduction ratio: 2-2000,
Output torque: 1.0gf-cm to 50Kgf-cm;
3) Customized worm and gear transmission machinery;
4) Precise electromechanical motion module.
Applications:
High used in automobile unit, automatic kitchen & toilet, home appliance, instrument & meter, medical appliance, personal care, safety monitor, digital camera, model aero planes and toy, etc.
2D Drawing
