Electronic switch miniature planetary gearbox with Low nois
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

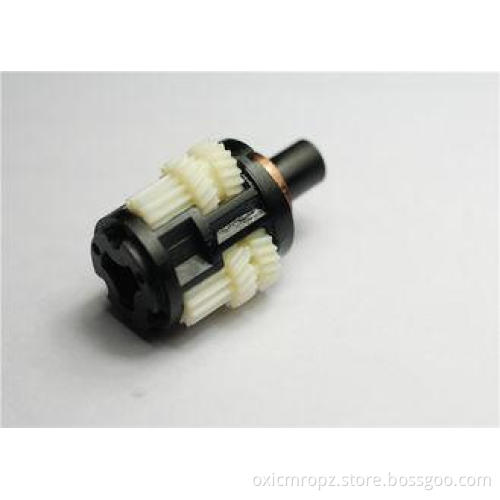

Electronic switch miniature planetary gearbox with Low noise , ODM / OEM
Specifications
|
Technical Parameter |
diameter |
6mm |
|
voltage |
3V |
|
|
current |
25mA or customized |
|
|
motor |
DC brush motor |
|
|
torque |
25-200gf.cm or customized |
|
|
speed |
47-1200 rpm |
|
|
reduction ratio |
26-700 or customized |
|
|
noise level |
less than 40dB |
|
|
life time |
500 hours |
|
|
working temperature |
-40 to 95℃ |
|
|
Axial clearance |
<0.3mm |
|
|
Certification |
ROHS/ISO9001/ISO14001/SGS/TS16949 |
|
|
Suitable for |
Camera, Robotic hand, Electronic switch(lock), Toy, Remote control device, etc |
|
|
OSD Language |
English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean |
|
|
The basic specifications for reference only, specifications can be customized. |
||
| Model | At Rated Load | At Stall | Transmission Reduction | Overall Length L | Gear Box Length L1 | |||||
| Speed | Current | Torque | Stall Torque | Stall Current | ||||||
| rpm | mA(MAX) | gf.cm | mN.m | gf.cm | mN.m | mA | Ratio | mm | mm | |
| ZWPD006006-26 | 1000 | 40 | 25.0 | 2.55 | 55.0 | 5.61 | 190 | 26/1 | 16.35 | 7.05 |
| ZWPD006006-136 | 200 | 40 | 120.0 | 12.24 | 280.0 | 28.57 | 190 | 136/1 | 18.7 | 9.4 |
| ZWPD006006-700 | 40 | 40 | 200.0 | 20.41 | 452.0 | 46.12 | 190 | 700/1 | 21.05 | 11.75 |
Description
Main Products
1) Precise component and assembly of plastic and metal powder injection;
2) Precise motor gear box reducer: diameter 4-40mm,
Output speed: 5-2000rpm,
Reduction ratio: 2-2000,
Output torque: 1.0gf-cm to 50Kgf-cm;
3) Customized worm and gear transmission machinery;
4) Precise electromechanical motion module.
Competitive Advantage
- 18-year experience in manufacturing motor gearbox
- Experienced Staff: average 7-year experience in R&D
- ODM & OEM available
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Lowest Price
- Product High Performance: Low noise, High efficiency, Long lifespan
- High precision and large range of application
- Prompt Delivery
- Quality Approvals
- Small Orders Accepted
- Partners: HUAWEI, Panasonic, Bosch, SAMSUNG, other World Fortune 500 companies, etc.
- Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.
Applications
automobile unit,
automatic kitchen & toilet,
home appliance,
instrument & meter,
medical appliance,
personal care,
safety monitor,
digital camera,
model aero planes and toy, etc.
Reliability Test & Laboratory
* Noise Test
* Water-proof Test
* Life Test
* Impact Test
* Storage Test
* Salt Spray Test
* Environmental Related Substance.
