Mini Planetary Electric Motor Gearbox for Monitoring Equipm
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

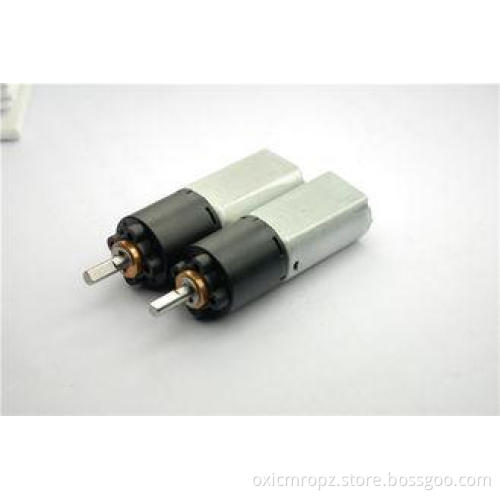

Mini Planetary Electric Motor Gearbox for Monitoring Equipment
Specifications
|
Parameters |
diameter |
20mm |
|
motor |
DC brush motor |
|
|
noise level |
less than 40dB |
|
|
life time |
500 hours |
|
|
working temperature |
-40 to 95℃ |
|
|
tolerance |
<0.3mm |
|
|
Certification |
ROHS/ISO9001/ISO14001/SGS/TS16949 |
|
|
Suitable for |
Robot, Hair curler, Respirator, Automatic door & window, Monitoring equipment, and etc. |
|
|
OSD Language |
English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean |
|
|
The basic specifications for reference only, specifications can be customized. |
||
Main Products
1) Precise component and assembly of plastic and metal powder injection;
2) Precise motor gear box reducer: diameter 4-40mm,
Output speed: 5-2000rpm,
Reduction ratio: 2-2000,
Output torque: 1.0gf-cm to 50Kgf-cm;
3) Customized worm and gear transmission machinery;
4) Precise electromechanical motion module.
Description
| Model | No Load | At Rated Load | Max Rated Torque of Gear Box | Max Instant Torque of Gear Box | Transmission Reduction | Overall Length L | Gear Box Length L1 | |||||
| Speed | Speed | Current | Torque | Power | ||||||||
| rpm | rpm | mA(MAX) | gf.cm | mN.m | W | gf.cm | gf.cm | Ratio | Stage | |||
| ZWPD02020-4 | 1837 | 1499 | 149 | 40 | 4 | 0.6 | 600 | 1800 | 4/1 | 1 | 38.4 | 13.3 |
| ZWPD02020-6 | 1224 | 999 | 149 | 60 | 5.9 | 0.6 | 600 | 1800 | 6/1 | |||
Competitive Advantage
- 18-year experience in manufacturing motor gearbox
- Experienced Staff: average 7-year experience in R&D , ODM &OEM
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 15 working days after payment
- Quality Approvals
- Small Orders Accepted
- Partners: HUAWEI, Panasonic, Bosch, SAMSUNG, other World Fortune 500 companies, etc.
- Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.
Applications
Automobile unit: head light regulator, braking system
automatic kitchen: fruit and vegetable juice extractor
automatic toilet appliances: dustbin
home appliance: cleaning robot,
instrument & meter: timing system
medical appliance: medical gear pump,
personal care: hair curler, electric toothbrush
security and protection: electric lock,
digital camera: pan tilt
model aero planes and toy: toy car
etc.
Reliability Test
* Noise Test
* Water-proof Test
* Life Test
* Impact Test
* Storage Test
* Salt Spray Test
* Environmental Related Substance.
Payment terms
1) Advance Payment: 50% of tooling.
2) After sending the first sample for testing: 30% payment of tooling
3) Qualified the samples: 20% payment of tooling and samples fee.
Once we got the 50% tooling payment, we will launch the project and begin production.
The lead time need 45 days.
2D Drawing
