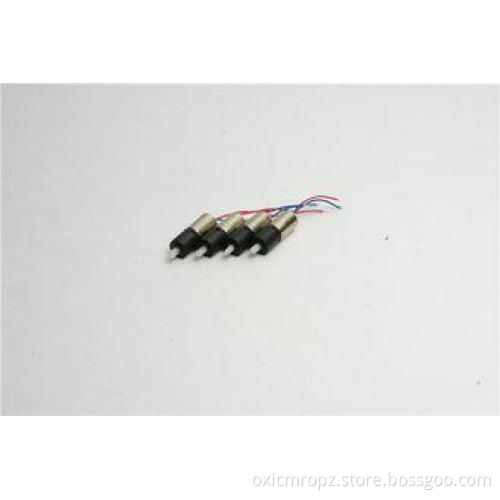

High Efficiency 6mm Coreless Motors with Micro Planetary Gears
Applications
Robot, Hair curler, Respirator, Automatic door & window, Monitoring equipment, and etc.
Description
| Model | At Rated Load | At Stall | Transmission Reduction | Overall Length L | Gear Box Length L1 | |||||||
| Speed | Current | Torque | Power | Stall Torque | Stall Current | |||||||
| rpm | mA(MAX) | gf.cm | mN.m | W | gf.cm | mN.m | mA | Ratio | Stage | mm | mm | |
| ZWPD006006-26 | 1000 | 40 | 25.0 | 2.55 | 0.1 | 55.0 | 5.61 | 190 | 26/1 | 2 | 16.35 | 7.05 |
| ZWPD006006-136 | 200 | 40 | 120.0 | 12.24 | 0.1 | 280.0 | 28.57 | 190 | 136/1 | 3 | 18.7 | 9.4 |
| ZWPD006006-700 | 40 | 40 | 200.0 | 20.41 | 0.1 | 452.0 | 46.12 | 190 | 700/1 | 4 | 21.05 | 11.75 |
Specifications
|
Parameters |
diameter |
6mm |
|
motor |
DC brush motor |
|
|
noise level |
less than 40dB |
|
|
life time |
500 hours |
|
|
working temperature |
-40 to 95℃ |
|
|
tolerance |
<0.3mm |
|
|
Certification |
ROHS/ISO9001/ISO14001/SGS/TS16949 |
|
|
Suitable for |
Robot, Hair curler, Respirator, Automatic door & window, Monitoring equipment, and etc. |
|
|
OSD Language |
English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean |
|
|
The basic specifications for reference only, specifications can be customized. |
||
Main Products
1) Precise component and assembly of plastic and metal powder injection;
2) Precise motor gear box reducer: diameter 4-40mm,
Output speed: 5-2000rpm,
Reduction ratio: 2-2000,
Output torque: 1.0gf-cm to 50Kgf-cm;
3) Customized worm and gear transmission machinery;
4) Precise electromechanical motion module.
Competitive Advantage
- 18-year experience in manufacturing motor gearbox
- Experienced Staff: average 7-year experience in R&D , ODM &OEM
- International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 15 working days after payment
- Quality Approvals
- Small Orders Accepted
- Partners: HUAWEI, Panasonic, Bosch, SAMSUNG, other World Fortune 500 companies, etc.
- Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.
Reliability Test
* Noise Test
* Water-proof Test
* Life Test
* Impact Test
* Storage Test
* Salt Spray Test
* Environmental Related Substance.
Payment terms
1) Advance Payment: 50% of tooling.
2) After sending the first sample for testing: 30% payment of tooling
3) Qualified the samples: 20% payment of tooling and samples fee.
Once we got the 50% tooling payment, we will launch the project and begin production.
The lead time need 45 days.
2D Drawing
