8 Port 250Mbps Plastic Optical Fibers Network Ethernet Switch

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

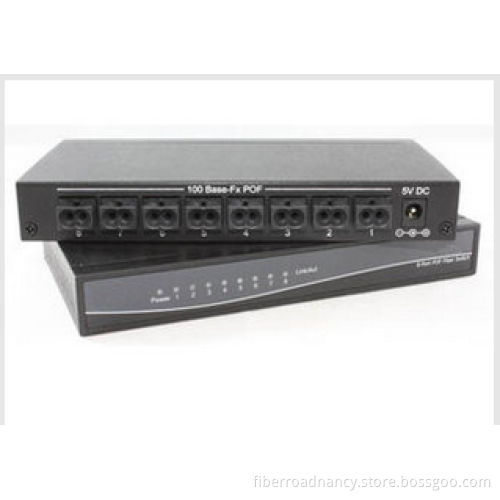

8 Port 250Mbps Plastic Optical Fibers Network Ethernet Switch High Speed Data Transmission

8-port 100Base-FX POF Ethernet switch
It supports full-duplex operations at its fiber optic interface in the form factor of OptoLock interface.
The OptoLock is one kind of POF (plastic optic fiber) interface that suit for low-cost and high-speed data transmission.
The OptoLock patch cord that can transmit data at S200 (250Mbps) speed for 50 meters.

Technical Parameter:

Standard:	IEEE802.3, IEEE802.3u , IEEE802.3x
Port:	8-Port 100Base-FX OptoLock
Switch Processing Scheme	Store-and-forward
Throughput(packet per second)	3.571Mpps
Address Table	4K entries
Share data Buffer	1.625Mbits
Maximun Transmit Unit	1536 Bytes
Flow Control	Back pressure for Half-Duplex, IEEE 802.3x Pause Frame for Full-Duplex
Power Input	DC5V/ 2.5A Outer AC Adapter
Operational Temperature:	0 ℃ ~ 50 ℃
Storage Temperature:	-10 ℃ ~ 60 ℃
Humidity:	5%~90% non-condensing
Dimensions:	165mm x 87mmx 23mm (W x D x H)
