8-Port 100Base-Fx Fiber Optic Switches Fiber Switch

Get Latest Price

Payment Type:: T/T, Western Union

Incoterm:: EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	ShenZhen
Productivity:	100%
Supply Ability:	3000PCS/month
Payment Type:	T/T,Western Union
Incoterm:	EXW
Certificate:	CE,ISO,SGS
Transportation:	Land,Air

Product Description

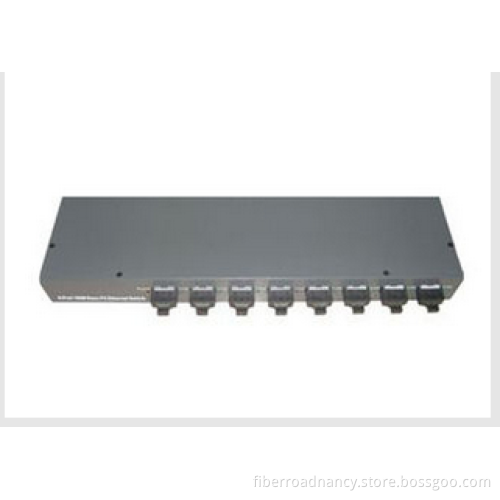

8-Port 100Base-Fx Fiber Optic Switches Fiber Switch

This Fast Ethernet Optical Fiber Switch has eight 100M Fx port. Customer can choose different Fx specification according as his demand, such as Multimode or Single-mode, Single fiber or Dual fiber and Single-mode 20-100km etc. The product is possessed of stable performance, excellent quality and reasonable price. It is applicable to use in constructing of Optical Fiber Ethernet network.

8-Port 10/100Mbps fiber module for option.
Supports STORE AND FORWARD switching.
Conforms to IEEE 802.3x back pressure in half-duplex and flow control infull-duplex operation mode.
Supports MAC self-learning.
Dynamic LED indicators.
Supports port-based VLAN.
Steel case.

Standard:	IEEE802.3,IEEE802.3u ,IEEE802.3x
Topology	Star
Number of Ports	8-Port 100Base-Fx
Uplink Ports	None
Transmission Rate	10Mbps : 14880pps , 100Mbps : 148800pps
Switching mode	Store-and-Forward
Flow control mode	IEEE 802.3x full-duplex flow control and back pressure flow control
LED Indicator	LED status of Link, activity, and power on diagnostic function
Cable Support	10Base-T : 3, 4 or Cat 5 shielded / unshielded twisted pair , 100 meters max. ; 100Base-TX : Cat 5 shielded / unshielded twisted pair , 100 meters max. 100Base-Fx : 8.3μm , 8.7μm , 9μm and10μm on single mode fiber and 50 , 62.5 and 100μm on multi-mode fiber
Power supply	AC:220V or DC:-48V
Input Voltage:	AC100V-AC240V/50-60Hz
Operational Temperature:	0 ℃ ~ 50 ℃
Storage Temperature:	-10 ℃ ~ 60 ℃
Humidity:	5%~90% non-condensing
Dimensions:	232mm * 142mm * 45mm
