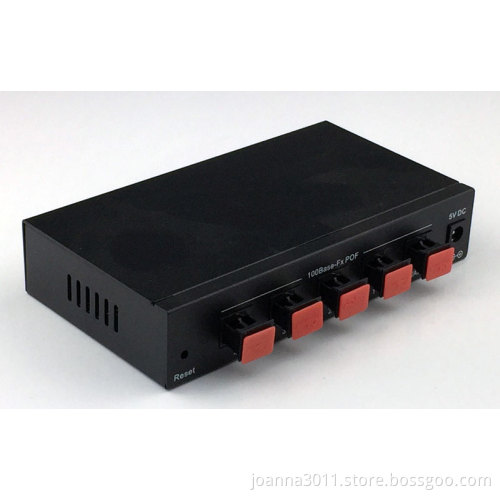

5-Port 100Base-FX POF Switch
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 1000pcs/month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | EXW |
| Certificate: | CE,FCC,RoHS,ISO9000 |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description
Key Features:
- Integrate 5 ports OptoLock® or SMI optical fiber transceiver.
- All port supports 100Base-FX with flow control.
- Supports broadcast storm filtering function.
- Supports 1536/1552 byte maximum packet length.
- Plug-and-play and easy installation.
- Low power consumption and low cost.
- EMI standards comply with FCC, CE class A
Specification :
| Product Name | 5 Ports POF Network Switch |
| Standards Compliance |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full Duplex Flow Control |
| Network Ports | 5 x 100Mbps POF OptoLock® Connectorless System |
| Address Table | 4K entries |
| Share data Buffer | 2.75Mbits |
| Maximun Transmit Unit | 1536 Bytes |
| Flow Control | Back pressure for Half-Duplex, IEEE 802.3x Pause Frame for Full-Duplex |
| Power Supply | AC 90-260V,50/60Hz 5V/2.5A internal AC Adapter |
| Dimensions |
Weight:0.45kg 140mm x 83mmx 28mm (W x D x H) |
| Environmental Specifications |
Operating Temperature: 0~40°C. Storage Temperature: -20~85°C. Operating Humidity: 90% RH non condensing Storage Humidity: 95% RH non condensing |
| Cabling |
Fiber: Ф2.2mm Duplex POF Wavelengh: 650nm Distance: ≤100m |
